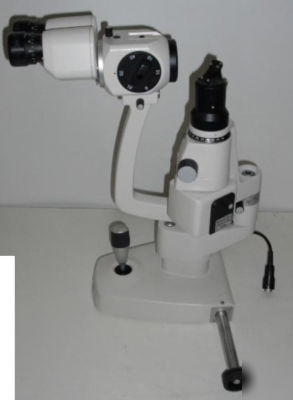

Cso sl-980 slitlamp model 5X 5 magnifications opthalmic
This budget Zeiss style Slitlamp has quality optics and offers great value for money.
5 Magnifications 6X, 10X, 16X, 25X, 40X.
Light Source Halogen illumination is transmitted more effectively by means of a new optic system that produces a clear and brilliant image.
The exceptionally natural visual resolution comes from the use of a classic 13 convergent microscope.
Suitable for use with Goldmann R type Tonometer.
Magnification: 5 position rotating drum
Total magnification: 6X - 10X - 16X 25X 40X
Real fields of view (mm): 37 24 14 8 5,2
Interpupillary adjust (mm): 48,5 80
Diopter adjustment(diopter): +/-6
Slit width(mm): 0 14 continuously variable
Slit length(mm): 14 (1,8 12 continuously variable)
Aperture diameter(mm): 14 9 5,5 0,3.
Filters: cobalt, blue, red free, heat absorbing
Slit angle: +/- 90 continuous, tabo scale
Swivel range of slit prism: +/- 180 scale for angular difference
Angle of incidence: 0 horizontal
Free working distance: 69mm exit prism / patient s eye distance
Travel of instrument base:Z vertical 35mm X axis 108mm Y axis 113mm
Tabletop dimension: 380 x 500 mm.
Fixation Lamp: Micro 18V 26ma Red
Light source: 6V 20W Halogen Lamp
Power requirement: 110V 220V 240V +/-10 (wide input)
