2 cogsdill micro-limit countersink depth control tools

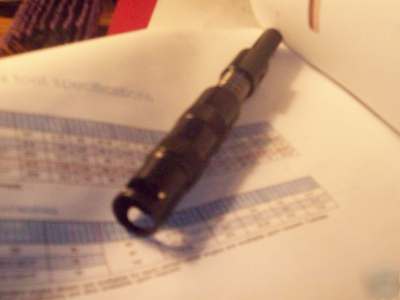

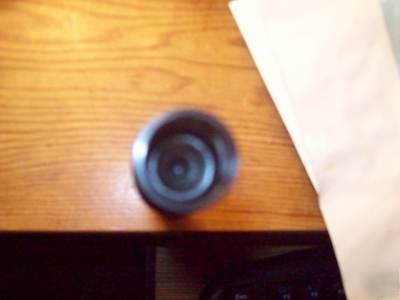

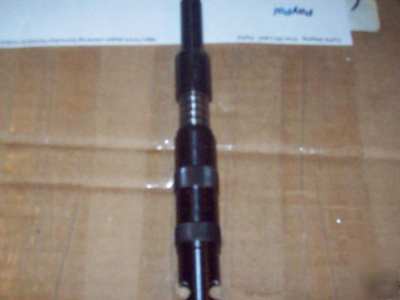

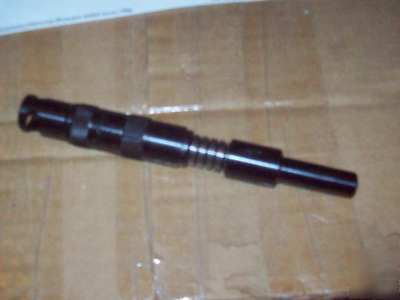

2 NEW UNUSED COGSDILL MICRO-LIMIT COUNTERSINK TOOLS. C.T.P. 35-04, #300 OT USA.
The MICRO-LIMIT is a precision
depth-control countersinking tool.
The tool consists of a drive with a
piloted countersink and a depth control
desired depth of cut. The selected
setting is locked in for accurate
and consistent results from part to
hole. A stop collar seats on the
face of the workpiece; the tool
advances to countersink the hole
to the desired depth Micro-Limit drive is
production work. The thrust load is
taken up on ball bearings through
a hardened steel stop collar. The
bearings. This design makes our
drive the longest lasting in the
Adjustment is in increments of
equipment. No special operator
adjustment collar to control the
depth of cut. Adjustment is in
increments of .001 inch (.025mm).
standard HSS drill. However, the
For long tool life, the MICRO-LIMIT
should be kept free of grit, chips,
replaced when the cutting edges
become dull. Loosen the set screw
in the side of the countersink to
countersink to remove it from the
drive spindle, and replace with a
