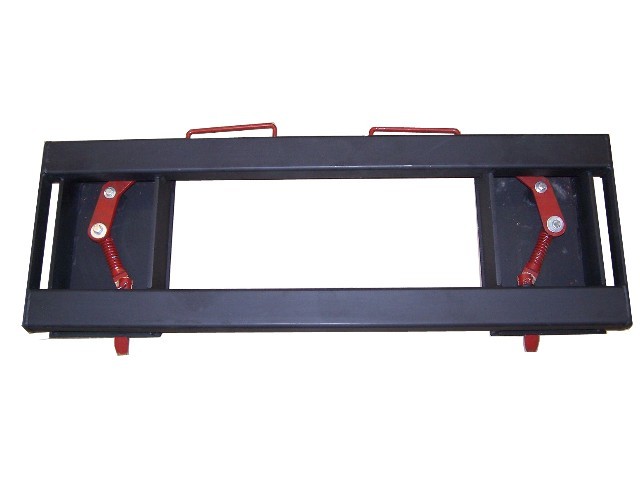

Skid steer hitch adapter_converter w/ blank back frame
WCo. Skid steer quick attach adapter with blank back for converting your hitch to fit your application using your own attaching plates or brackets.
* WCo. Skid steer quick attach hitch adapter accommodates standardized skid steer attachments.
* Thin design to keep the quick attach attachment as close as possible for maximum lifting capacity
* Overall height of back frame work is about 15 1/2" for attaching your mounting brackets.
* Frame constructed with 2 x 3 rectangular tube.
This model measures 45 1/2" wide and back frame is 15 1/2" tall for attaching your own brackets.
Here is a PDF page that you can use for planning your quick attach attaching brackets, or I you want us to build the brackets for you this is the diagram to use.
Pin-on Loader Specification Schematic Drawing for lift arms and cylinder hookup plates
Other sizes available, just contact us, we are friendly and helpful.
* 45 1/2" wide wider frames available
* Back frame is 15 1/2" tall
