> Garland GFE60-10RR range, 60" wide, 10 burners (33,000

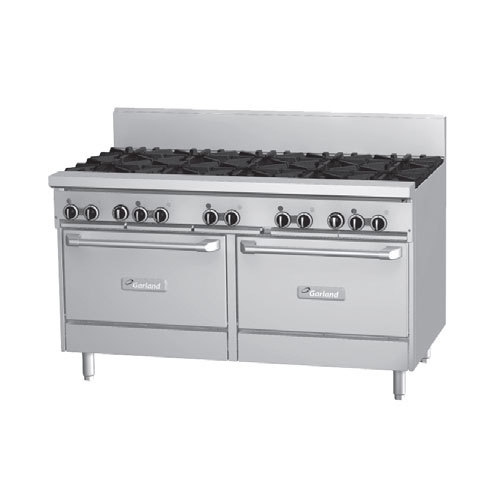

Garland GFE60-10RR range, 60" wide, 10 burners (33,000
Range, 60" Wide, 10 Burners (33,000 BTU), Two Standard Ovens (38,000 BTU), Electronic Pilot Ignition, Starfire Pro GFE Series
GFE Starfire Pro Series Restaurant Range, gas, 60"W, (10) 33,000 BTU open burners, with cast iron top & ring grates, electric pilot ignition, (2) standard ovens w/3 position rack guides w/oven rack each, stainless steel front, sides, plate rail and 10" low profile back guard, 6" s/s legs with adjustable feet, 336,000 BTU, CSA, NSF (Garland)
* Gas restaurant series range with large capacity (standard) oven. 59 1/16" wide and 27 1/4" deep work top surfaces.
* Ten Starfire-Pro 2 piece, 26.000 Btuh/7.61 kW, cast open burners set in split cast iron ergonomic grates.
* Griddle or optional hot top with cast iron "H" style burners.
* Porcelain oven interior with ribbed oven bottom and door. "Keep cool" oven door handle. Heavy cast iron H" 38,000 Btuh/11.13 kW (natural gas) oven burner controlled by even bake, fast recovery snap action modulating oven thermostat.
* Available with convection or standard oven bases.
* Flame failure protection: all burners
* Spark ignition on all concealed burners (open top burners manual ignition)
* Large 27" (686mm) work top surface
* Stainless steel front and sides
* Stainless steel 5" (127mm) plate rail
* Stainless steel low profile back guard
* 12" (305mm) section stamped drip trays w/ dimpled bottom
* 6" (152mm) adj. stainless steel legs with adjustable feet
* Large easy-to-use control knobs
* Gas regulator 1" NPT rear gas connection
* Standard on Applicable Models:
* Electric spark ignition on all burners, requiring single phase 115V 60Hz or 240V 50Hz (specify) prefix GFE models
* Ergonomic split cast iron top ring grates
* 26,000 Btuh/7.61 kW 2 piece cast iron Starfire- Pro open top burner
* 5/8" (15mm) thick steel griddle plate with snap action modulating griddle
* control 175 to 425 F ( 79 to 218 C), 23 (584mm) working depth surface,
* on right optional on left
* 4-1/4" (108mm) wide grease trough
* 18,000 Btuh/5.27 kW cast iron "H" style griddle burner per 12"(305mm)
* 38,000 Btuh/ 11.13 kW cast iron "H" style oven burner
* * Snap action modulating oven thermostat low to 500 F
* Large porcelain oven interior, fits standard
* sheet pans in both directions for
* Strong, keep-cool oven door handle
* Nickel plated oven rack and 3-position removable oven rack guide
* Convection oven w/3 nickel plated oven racks and removable rack
* guides in lieu of standard oven w/1/3HP 120v 60 Hz single phase fan
* motor change suffix RR to CR (1) or CC (2) convection ovens, CR ovens
