Nitek VB31AT video balun utp power combiner cctv
Manufacturer: Nitek Model/Part #: VB31ATCONDITION
Nitek VB31AT Video Balun UTP Power Combiner CCTV
Video Balun Combiner for twisted pair up to 750 feet (228 meters) in conventional UTP applications, 100 meters in TIA/EIA 568 applications.

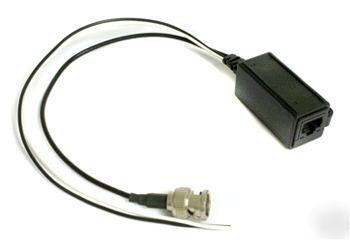

The VB31AT is a unique transmission device, which provides an economical means of sending video and camera power over a standard Category cables. Video is sent over one pair and camera power is sent over the two of the remaining pairs. A mini-coax pigtail with male BNC is used on the VB31AT. A pair of wires is provided for power connection. Connections to the Category cable are made via an RJ45 connector.
The VB31AT Video Balun provides the same high immunity to noise and interference as all of the Nitek baluns. This simplified wiring scheme provides a convenient method of powering the camera, allowing for quicker and easier installations. The RJ45 modular jack uses standard 568B wiring so spare network cables can be used.
This is a slick little device that allows you to send both video and CCTV camera power over standard twisted pair cables and saving you hundreds in potential cabling per camera!
