New galaxy dx 959 DX959 40 chan plus sidebands cb radio
NEW GALAXY DX959 40 CHANNEL AM/SSB MOBILE CB RADIO - SIDEBANDS - AUTOMATIC SWR CALIBRATION - 2 YEAR GALAXY FACTORY WARRANTY - FULL FEATURED.

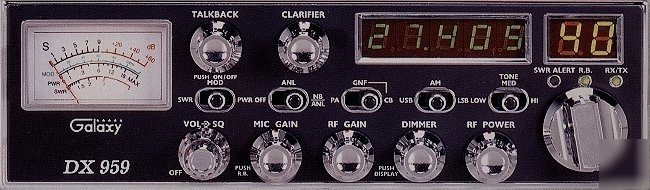

New Galaxy DX959 Mobile 40 Channel AM/SSB CB Radio.
Pre-wired for FC 347 Frequency Counter.
+/- 1.0 KHz Receive Clarifier.
Noise Blanker and Automatic Noise Limiter.
3-Position Tone Control Switch.
Green/Red LED Indicator for RX/TX.
Also The Following Galaxy Exclusive Features
Large, easy-to-read meter with 4 scales:
"S" Meter indicates up to 60 dB over S9.
Modulation Percentage Scale for use on AM.
Power Scale Calibrated for AM and SSB.
Automatic SWR Circuit (no complicated calibration procedure).
"Talkback" Circuit with On/Off Switch and Volume Control.
Variable Power Output Control.
Roger Beep with On/Off switch and LED Indicator.
Galaxy Noise Filter for use on weak signals.
Galaxy Two Year Factory Warranty.
Includes mounting bracket, hardware, wiring harness, and instructions.
Dimensions: 7-7/8"(W) x 9-1/4"(D) x 2-1/8"(H)
Frequency Range Frequency Range 26.965 - 27.405 MHz 26.965 - 27.405 MHz
Emission Emission AM/USB/LSB AM/USB/LSB
Frequency Control Frequency Control Phase-Lock-Loop Synthesizer Phase-Lock-Loop Synthesizer
Frequency Stability Frequency Stability 0.001% 0.001%
Temperature Range Temperature Range -30oC to +50oC -30oC to +50oC
Input Voltage Input Voltage 13.8V DC 13.8V DC
Antenna Impedance Antenna Impedance 50 Ohms 50 Ohms
Speaker Impedance Speaker Impedance 8 Ohms 8 Ohms
Size Size 7-7/8"(W) x 9-1/4"(D) x 2-1/8"(H) 7-7/8"(W) x 9-1/4"(D) x 2-1/8"(H)
RF Power Output RF Power Output AM 4W; USB/LSB 12W PEP AM 4W; USB/LSB 12W PEP
Frequency Response Frequency Response 300 to 2500 Hz 300 to 2500 Hz
Frequency Tolerance Frequency Tolerance 0.005% 0.005%
Spurious Emission Spurious Emission Better than -55dB Better than -55dB
Unwanted Sideband Unwanted Sideband Better than -55dB Better than -55dB
Sensitivity for 10dB S+N/N Sensitivity for 10dB S+N/N AM: 0.5uV; USB/LSB: 0.25uV AM: 0.5uV; USB/LSB: 0.25uV
Squelch Sensitivity Squelch Sensitivity Less than 0.5uV Less than 0.5uV
Audio Power Output Audio Power Output 2W @ 10% distortion 2W @ 10% distortion
Image Rejection Ratio Image Rejection Ratio -65dB -65dB
AGC Figure of Merit AGC Figure of Merit 100mV for 10dB Change in Audio Output 100mV for 10dB Change in Audio Output
Clarifier Range Clarifier Range +1.0 KHz +1.0 KHz
