> New shop fox® W1689 15" x 30" wide belt sander 5HP ( )
New shop fox® W1689 15" x 30" wide belt sander 5HP ( )

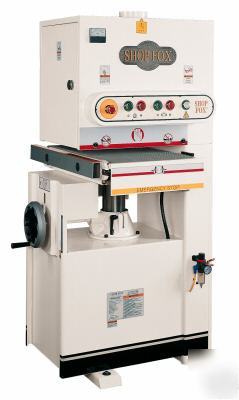

Woodstock International Shop Fox W1689 15"x 30" Wide Belt Sander
W1689 - 5 HP 15" Wide Belt Sander
This Wide-Belt Sander with open end will sand flat panels up to 30" wide in half the footprint of other wide-belt sanders with the same capacity. Features include independent motor controls, pneumatic belt tensioning, tracking and oscillation, amp/load meter, safety shut off bar, pull out support bar, built-in regulator/filter, 5" dust port and emergency disc brake. Versatility and smooth, flat finishes make this Wide-Belt Sander a real joy to own and operate.
* Sanding motor: 5 HP, 220V, 32 Amp, Single-phase
* Maximum sanding width: 15" x 2
* Maximum stock thickness: 5-1/2"
* Required air pressure: 75 PSI @ 2 CFM for belt tracking
* Footprint: 29" wide x 27-1/4" deep
* Height with dust port: 62"
