> New leviton industrial connector plug 6-15 15A 250V
New leviton industrial connector plug 6-15 15A 250V
NEW Leviton INDUSTRIAL Connector Plug 6-15 15A 250V

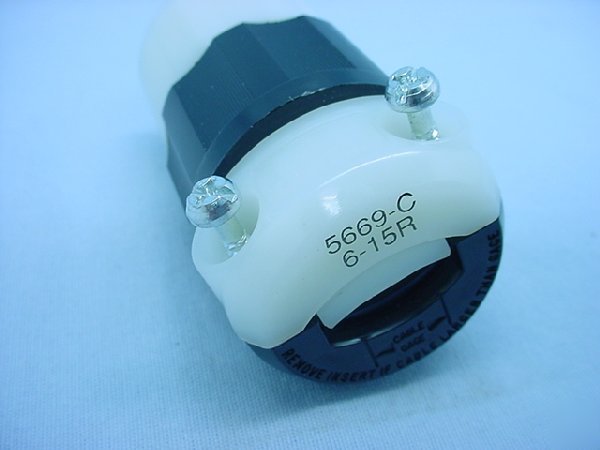

Leviton 5669-C straight blade connector. Industrial Specification Grade, NEMA 6-15R, 2-pole, 3-wire, grounding, rated 15A 250V. Leviton nylon plugs and connectors are superior in design, detail, and manufacture. Made to resist impact, punishing application environments, chemicals and sunlight, resulting in superior performance and long-lasting reliability. Each is individually packaged. Features include:
* Triple-wipe, heavy-duty power contacts set in deep pockets to resist damage
* Contacts are manufactured in solid one-piece brass for superior conductivity
* Individual deep-funnelled rectangular-shaped chamfered wire wells. Clear housing allows inspection of wire termination and provides molded-in wire strip gage
* Wire clamps move in individual chamber - provide positive crimp lock without cutting wire strand
* Captive, color-coded brass #8 terminal screws
* Cord clamp does not have to be disassembled from body for wiring - easy to tighten and no lost screws to find. Accepts all wire mesh strain reliefs
* Cord clamp seats flush with body for all cables rated from 10-3 ST to 18-3 SVT (.245"-.700")
* Clamp prevents damage to jacket on any cable used within rated range
* Husk is constructed of ST801 Super Tough Nylon for superior impact resistance in rugged environments
* Wiring module keyed to body for easy assembly and a tight fit
* Three fast-threading screws secure wiring module to body - combination Phillips and straight blade screws
* Beveled back edges prevent body from catching on corners and rough surfaces
* Complete-containment design insulates non-current carrying parts
* Fluted body design provides a sure grip
* NEMA configuration and Cat. No. printed on cord clamp; NEMA configuration and rating molded into face
Click here to see matching 6-15 plugs, connectors & receptacles. This is New Old Stock and is returnable for any reason. (SKU #L5669-C-EA; 4.00 Ounces)
