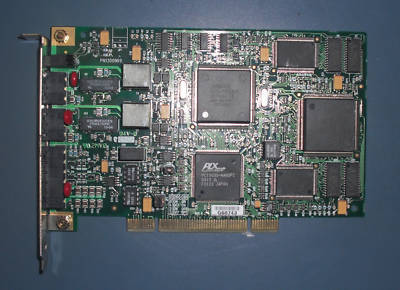

Allen bradley pktx communication card (1784-pktxd/b)
Performs data transmission, management, and local network diagnostics for PLC-5 processors over DH+ networks. The 1784-PKTXD has two ports for DH+ communication. Compatible with RAC6155 and RAC6180 computers. To use this card with the Windows 95 operating system, be sure to install the RSLinx or a custom software driver; otherwise, the card will not work properly.
762 m (2,500 ft) @ 230,400 bit/s
1,524 m (5,000 ft) @ 115,200 bit/s
3,048 m (10,000 ft) @ 57,600 bit/s
Communication Interface 1770-CD (Belden #9463)
