Thermal dynamics 1-1134-1 cutmaster A60 plasma cutter

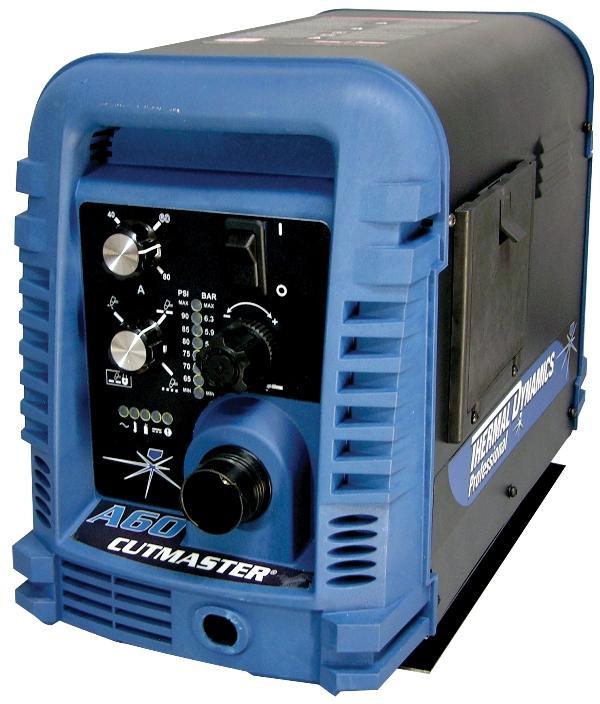

Thermal Dynamics 1-1134-1 Cutmaster A60 Plasma Cutter
Thermal Dynamics Cutmaster A60 Plasma cutter with machine torch. Model # 1-1134-1 Cutmaster A60 with 25 foot lead 180 degree machine torch
* Front Panel LEDs indicate status conditions for maximum efficiency.
* Multi-voltage allows operation from 208 to 460 Volts, 1 or 3 phase in a single power supply.
10 ft. (3.0m) Input Power Cable with plug (203/230V)
SL100SV Machine Torch, 180 degree Head
Quick Specifications: Gas Flow: 6.7cfm (189 lpm)Amperage Range: 20-60 Amps, 80 Amps Max., AdjustableWeight: 43 LBSInput Power: 208/230 - 460 Volt, 1 or 3 phase, 50/60 HzIndustrial applications: Contractor, heavy Fabrication, manufacturingCut Capacity:
* 5/8 in. (15mm) Maximum Piercing and Cutting Capacity
* 3/8 in. (10mm) Production Piercing and Cutting Capacity
* 1.0 in. (25mm) Maximum Edge Start
Duty Cycle: 80% @ 60 AmpsGas Pressure: 75 PSIPilot: Start CartridgeTorch: SL 100SV with ATC, 180 degree automationGas Type: AirCertifications: IP-23C, CSA, NTRL/C, CE, CC
