3-phase inverter remote control pendant & em stop

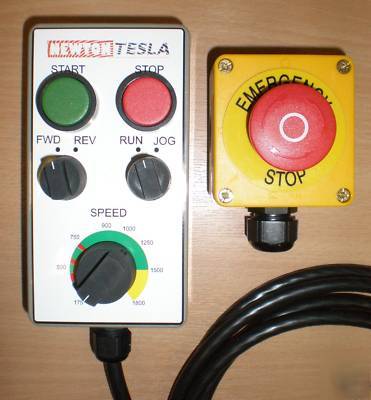

THE ORIGINAL Multi-function Inverter Remote Control Station Pendants, supplied complete with an Emergency Stop Station.
For use with our Mitsubishi Electric Inverter drive ranges (including D720S, D740, E720, S520 and E500) and IMO ranges (including VXM, VXR, CUB and the low cost iDrive models).
The Inverter Remote Control station Pendants feature 'industrial grade' 22.5mm pushbuttons and controls, and enable you to bypass the keypad buttons built-in to the Inverter drive.
Suitable for use with inverter drives fitted to all kinds of LATHES, MILLING MACHINES AND BENCH DRILLS and can be machine mounted.
Features of the multi-function remote control stations include:
* Start Pushbutton - Behaves like a No-Volt-Release function.
* Stop Pushbutton - Using the 3-wire (self holding) control function of the inverter drive.
* Forward / Reverse Selector switch - To change motor direction
* Run / Jog switch - To select between normal ramp up to speed running mode or 'Inch' facility which uses a preset speed of the inverter drive.
* Variable Speed Potentiometer - To infinately vary the speed of the motor.
The units are supplied fitted with a 2metre 8-core cable, with all connections colour coded for easy connection to the inverter drive. A connection diagram drawing is supplied. We provide full after sales service and support if you need it.

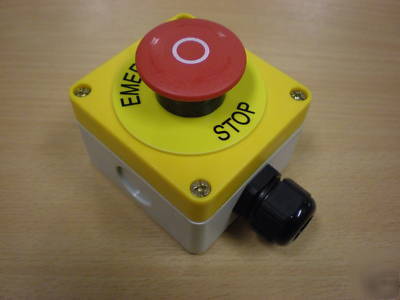

Features of the remote Emergency Stop button station include:
* 40mm Red Mushroom head Emergency Stop button.
* Maintained action once triggered. "Twist-to-Release"
* Housed in to a 70mm x 75mm x 50mm enclosure.
* Dual channel - Supplied with 2 N/C Contact blocks.
* Supplied complete with cable compression gland to suit.
We are located in Warrington, Cheshire. Prices INCLUDE VAT at the new rate of 17.5%.
* Lathe Speed Control Systems - including systems for the Myford ML7, Super 7, Raglan, Boxford, Colchester.
* AC and DC Variable speed drives for industry upto 650kW
* Control System and Motor Control Panel System design.
* 24Hr On-site Servicing and Repairs
* Factory Automation and Control
Our engineers travel throughout the UK and Europe troubleshooting on variable speed drives and factory automation.
