Ttc/acterna 211 t-berd t-1 analyzer

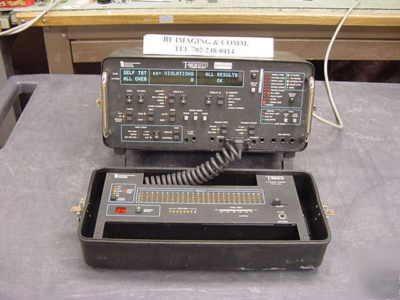

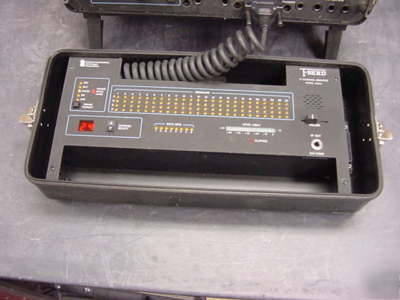

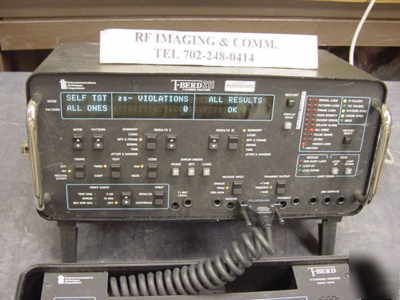

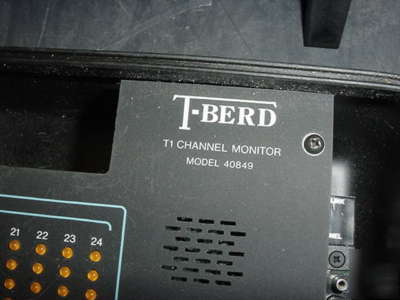

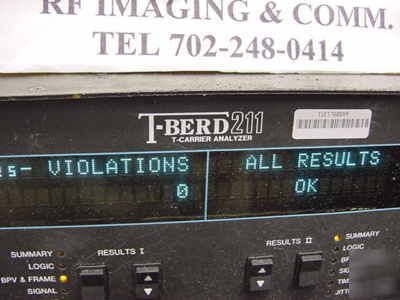

Acterna / TTC T-Berd 211 T-Carrier T1 Analyzer With 40849 T1-channel monitor
Comes with 90-day warranty and a Manual.
T-Berd T-Carrier Analyzer Features:
* Automatic configuration and results summary
* Automated sequences of test patterns for one-step circuit qualification and stress tests
* Pulse shape analysis, signal level and frequency, simplex current, and wander measurements
* Out-of-band ESF loop codes standard
* Wideband and high band jitter measurement
Operating Modes: Self Test, Automatic Configuration, T1 Unframed, T1 D4 Framed, T1 ESF Framed, T1 SLC Framed. T1C Test Loopback, Auxiliary
Patterns: All Ones, 1:1, 1:7, 2 in 8, 3 in 23, QRSS (T1 and T1C), 2^15 -1, 2^20 -1, 2^23 -1, User Pattern 1 (3-24 bits), User Pattern 2 (3-24 bits), BRIDGTAP(tm) Pattern Sequence, MULTIPAT(tm) Pattern Sequence, All Zeros
Input and Output Connectors: Bantam, WECO 310, 15-pin D, BNC
Bridge: > 1000 ohms with ALBO
DSX-MON: 100 ohms with AGC
Bridge or term: +6 dBdsx to -35 dBdsx (T1), +3 dBdsx to -6 dBdsx (T1C)
DSX-MON: +6 dBdsx to -24 dBdsx (T1), +3 dBdsx to -24 dBdsx (T1C)
Level Measurement: +6 dBdsx to -40 dBdsx; +6 to -6, 0.1 dB resolution; -6 to -40, 0.5 dB resolution
Frequency Measurement: 1 Hz resolutions; 5 ppm accuracy
Transmit Timing Sources: Internal Clock, External Clock, Reference Clock, Recovered Clock
Loopback Codes: CSU, CSU Line (ESF), CSU Payload (ESF), NIU (FAC1, FAC2, FAC3), NIU Network (ESF), Programmable (3 to 8 bits)
Wideband: >/= 32 UI, 10 Hz to 40 kHz
Highband: >/= 32 UI, 8 kHz to 40 kHz
Jitter Masks: CCITT O.171, PUB 41451, PUB 62411-1983, PUB 62411-1985, PUB 43801
Pulse Masks: CB 119 (ANSI T1.102), ANSI T1.403-1989
Wander Measurement: +99999 UI, 1 UI resolution
Power Requirements: 115 VAC 10%, 50 to 60 Hz
* TESTED AND CALIBRATED WITH MANUAL/POWER CORD
* CALL 1-(***)-248-0414 AND ASK FOR PAUL M ZEPPA
* OR EMAIL ME AT ****@rfimage.com
