Fabco air MP3-1-2-1WF multi-power cylinder varian 9515

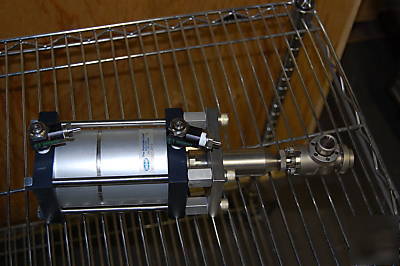

FABCO AIR MP3-1-2-1WF MULTI-POWER CYLINDER WITH VARIAN 9515014
The MULTI-POWER Cylinder has multiple pistons attached to a common rod with internal air passages thus allowing much higher forces without having to use a bulky, larger bore cylinder or high pressure hydraulics.
Multi-Power Cylinders come in 10 bore sizes with a choice of 2, 3 or 4 stages (pistons). Additional stages at lower pressures are available. Forces to 22 tons can be reached with only 100 PSI shop air.
* 10 Bore Sizes (1-1/8" to 12")
* Duralon Rod Bearing for Longer Life
* Prelubed with Magnalube-G Teflon Grease
* Chrome Plated Stainless Steel Piston Rods
http:// /pdf/Sec_5.pdf
Available in 2, 3 or 4 Stages @ 150 psi
(additional stages at lower pressure available)
* Uses only 1 Stage to Return, Saving Air Volume
* Front Face-Rear Face-Foot-Extended Tie Rod Mounts
* Many Options to Choose From
* Magnetic Piston Sensing Available
MOUNTING EXTENDED TIE ROD, ROD END ONLY
