Leica TCRP1205R300 robotic reflectorless total station
LEICA TCRP1205R300 ROBOTIC TOTAL STATION
Magnification: 30 x Centering accuracy: 1.5 mm at 1.5m
Free objective aperture: 40mm Laser dot diameter: 2.5 mm at 1.5m
Field of view: 1 30 (1.66 gon) / 2.7 m at 100 m Endless drives
Focusing range: 1.7 m to infinity Number of drives: 1 horizontal / 1 vertical

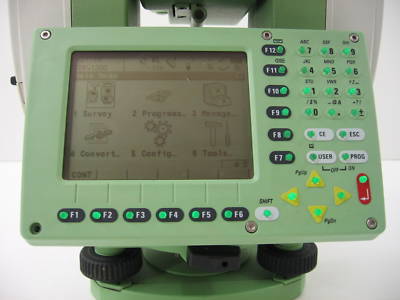

Keyboard and Display Battery (GEB221)
Display: 1/4 VGA (320*240 pixels), graphic LCD, colour, illumination, Type: Lithium-Ion
Keyboard: 34 keys (12 function keys, 12 alphanumeric keys), illumination Capacity: 4.4 Ah
Angle display: 360 , 360 decimal, 400 gon, 6400 mil, V% Operating time: typ. 5 8 h
Distance display: meter, int. ft, int. ft/inch, US ft, US ft/inch Weights
Position: face I standard / face II optional Total station: 4.8 5.5 kg
Data storage Battery (GEB221): 0.2 kg
Internal memory: 256MB (optional) Tribrach (GDF121): 0.8 kg
Memory card: CompactFlash cards (256MB) Environmental specifications
Number of data records: 1750 /MB Working temperature range: 20 C to +50 C
Interfaces: RS232, Bluetooth Wireless-Technology (optional) Storage temperature range: 40 C to +70 C
Circular Level Dust / water (IEC 60529): IP54
Sensitivity: 6 / 2mm Humidity: 95 %, non-condensing
Leica TCRP1205 5" Robotic Total Station
United States: $50.00 to lower 48 states
Rest of the World: $210 USD (Europe and Asia)
