> Fluke dtx-1800-mso dtx-quad-otdr fiber otdr dtx-1800
Fluke dtx-1800-mso dtx-quad-otdr fiber otdr dtx-1800
* Fluke DTX 1800 CableAnalyzer
* Fluke DTX 1800 SmartRemote
* (2) DTX-PLA002 Cat6a/Class EA Permanent Link Adapter
* Fluke DTX-CHA002 Cat6a/Class EA Channel Adapter
* Fluke DTX-SFM2 Singlmode Fiber Module Set
* Fluke DTX-MFM2 Multimode Fiber Module Set
* (2) MM 62.5 SC-SC Duplex
* (2) MM 50 SC-SC Duplex
* Fluke Linkware Cable Test Managment Software
* DTX-PLA002 Instruction Sheet
* Hard Copy Manual for DTX Fiber Modules
* Fluke NFK1-Launch 62.5 m Launch Cable
* Fluke NFK2-Launch 50 m Launch Cable
* Fluke NFK3-Launch 900 m Launch Cable
* Fluke NFK-Launch Instruction Sheet
* DTX Compact OTDR Hard Copy Manual
* DTX Compact OTDR Module Installation Guide
* DTX-OTDR Soft Case w/ Strap
* Fluke FT500 Fiber Inspector Mini w/ AC & Instruction Sheet
* Fluke Fiber Optic Cleaning Cube
* Fluke Fiber Optic Cleaning Cards
* Fluke 1.25mm Fiber Optic Swabs
* Fluke 2.5mm Fiber Optic Swabs
* Fluke Fiber Optic Solvent Pen
* Fiber Optic Cleaning Instruction Sheet
* Carrying Case For Fiber Optic Cleaning Kit

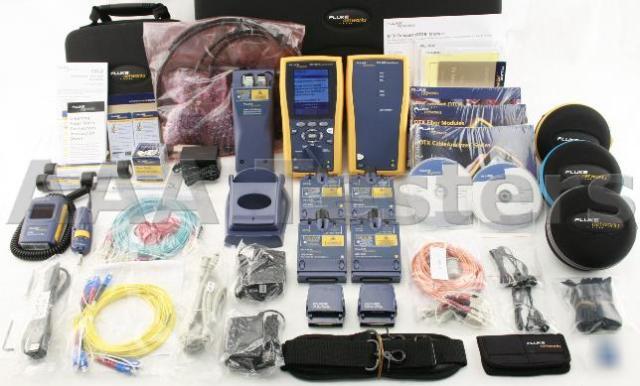

Fluke Networks DTX-1800-MSO Kit
DTX-1800 Cable Analyzer with DTX-MFM2 850nm/1300nm Multimode, DTX-SFM2 1310nm/1550nm Singlemode Fiber Module Sets & Fluke DTX-QUAD-OTDR Singlemode 1310/1550nm & Multimode 850/1300nm OTDR Module
This Kit Is Brand New! It Has Never Been Used And Is Still In The Original Packaging!
This Kit Contains The DTX-QUAD-OTDR Module w/ VFL Option.
This Module Will Allow You To Perform Singlmode 1310/1550nm & Multimode 850/1300nm OTDR Testing w/ Your DTX-1800 Cable Analyzer
DTX-SFM2 & DTX-MFM2 Modules Will Allow You To Perform Loss/Length Fiber Testing In Cooperation With The DTX-QUAD-OTDR Module
Test & Certify Cat5, Cat5e, Cat6 up to 900mhz and SM/MM fiber Cabling Installations!
Fluke Networks DTX-1800 Digital Cable Analyzer
The DTX CableAnalyzer Series from Fluke Networks is the testing platform for today and tomorrow. This revolutionary platform significantly reduces total time to certify by improving every aspect of the testing process. It all starts with a Cat 6 Autotest time that s several times faster than other testers and fiber testing that s five times faster. DTX also gives you a complete solution for 10 Gig testing over copper, Basic Tier 1 fiber testing, and Extended Tier 2 fiber testing with the industry s only modular OTDR. The DTX makes you ready for whatever the world throws at you today and tomorrow.
Significantly reduces total time to certify.
Cat 6 certification in 9 seconds
The DTX-1200 and DTX-1800 perform Cat 6 certification tests in just 9 seconds in full compliance with industry standards and with superior accuracy. That s several times faster than existing testers. This incredible speed means you can test up to 170 more links in an eight-hour shift.
Troubleshoot faults twice as fast
When a link fails, the DTX Series provides quick, easy-to-understand directions to identify the point of failure (distance from the tester) and the possible reason(s) for the failure.
These directions not only tell you the problem, but also identify corrective actions your test technicians can take to solve the problem quickly all without having to consult the project manager. Instead of spending time executing trial and error corrections and re-testing to find out whether the problem has been resolved the technician knows exactly where to look and what to do to fix the failing link. Even if only two percent of the cables certified in one shift fail Autotest, you ll save as much as two hours of labor time per day of certifying.
Fast even when you re not testing
The DTX Series isn t just a faster way to test. It cuts setup and reporting times. Its ease-of-use lowers training time. Extended battery life means you can do more on a single charge. And a bright color display, ample memory, and built-in talk set all contribute to overall productivity while enhancing the user experience. This all adds up to save you time and money every day.
Enhance the power of DTX, Verify network service availability
Test cabling with Midspan PSEs for POE applications
Midspan power sources block DC power from traveling to the Ethernet switch or other active equipment in the wiring closet. This prohibits Wiremap tests of the link with conventional DC test methods. The DTX Series CableAnalyzer has the capability to test cabling using AC signals. This unique feature allows full certification to ISO and TIA standards where Midspan Power over Ethernet supplies are used.
Certify patch cord performance
Test patch cords to ensure optimal network performance with greater channel throughput and greater system margin. Attach the optional DTX Patch Cord Adapters (DTX-PCU6S) to the DTX main and remote units and you re ready to certify patch cord performance to TIA Cat 6/5e specifications and also ISO class D/E.
Test coaxial cable quickly and easily
Extend the capabilities of your DTX CableAnalyzer to test coaxial cabling systems including legacy data cabling (such as 10BASE-2 or 10BASE-5 Ethernet) and video distribution coaxial cabling. Test coax cable length, propagation delay, cable (input) impedance and insertion loss as a function of signal frequency.
Add fiber optic test and network verification cabling to your DTX cable analyzer. Certify cable and fiber loss, length and polarity, verify network service availability and, link connectivity, and document in one LinkWare report. Includes two modules one for Main and one for Smart Remote, 850nm and 1300nm LED sources combined into single output port, 850/1300/1310/1550 nm power meter, and integrated VFL, 62.5/125 SC-SC test cables, and adapters.
* Fiber on-board when you need it
* Five times faster than existing testers with 12-second Autotest
* Delivers Tier 1 LinkWare fiber certification reports
* Locates fibers, verifies continuity and polarity, and finds breaks with built-in VFL
* Speeds testing with TALK, FINDFIBER, MONITOR, bi-directional and single fiber test features
* Functions as a Fluke Networks OptiFiber Certifying OTDR Smart Remote
DTX-MFM2 - Multimode Fiber Modules
* 850 nm and 1300 nm LED sources combined into a single output port
* 850/1300/1310/1550 nm power meter
DTX Singlemode Fiber Modules - Includes two modules (one for Main and one for Smart Remote). each module contains 1310 nm and 1550 nm laser light source combined into single output port, 850-1550 nm power meter, integrated VFL, SC adapter for power meter and Singlemode SC-SC Test Reference Cords.
Fluke Networks' DTX-SFM2 set of two DTX Fiber Modules adds record-fast singlemode fiber certification and fault location to the DTX CableAnalyzer Series. Only Fluke Networks' DTX platform offers optional on-board fiber modules so you'll never lose time searching for your fiber adapter. Modules are easy to insert into the back of any DTX Series CableAnalyzer. With a resident fiber module on board, fiber certification is always ready when you are. No other solution lets you switch between copper and fiber with a touch of a button.
These modules deliver the greatest time and cost savings. They accelerate testing through exclusive technology and an easy-to-use interface. Press the Autotest button and you get standards-compliant certification automatically. Test two fibers each at two wavelengths, measure length and determine the pass or fail status - all in about 12 seconds. That's five times faster than other adapters. These modules let you test more fibers in less time, cutting testing costs and freeing you up for other tasks. They can easily save more than 100 labor hours per year.
DTX-SFM fiber modules use laser sources to ensure standards-compliant certification of singlemode fiber. Speed testing with TALK, FINDFIBER, MONITOR, bi-directional and single fiber test features. Save, upload, manage and print comprehensive certification reports using LinkWare PC software.
These comprehensive Tier 1 certification solutions include loss, attenuation, length and polarity measurements. You can validate fiber link performance and installation quality. Measure optical loss at multiple wavelengths. And bi-directionally test fibers at two wavelengths without swapping near- and far-end units. Deliver Tier 1 fiber certification reports by uploading test results to LinkWare PC software.
An integrated on-module visual fault locator (VFL) makes troubleshooting simple link problems quick and incredibly easy. The bright laser-driven VFL helps you locate many near-end fiber faults. Also use it to locate fibers as well as verify continuity and polarity. Exclusive integrated design ensures the visual fault locator is always on hand when you need it.
The DTX Compact OTDR is a full featured Optical Time Domain Reflectometer (OTDR) module that snaps onto the Fluke Networks DTX CableAnalyzer. It makes the DTX powerful certification tool a complete, easy-to-use OTDR that shoots and analyzes traces on singlemode and multimode fiber.
The DTX Compact OTDR module makes every technician a fiber expert with unparalleled ease of use, automatic OTDR settings, loss limits for events and fiber links, launch fiber compensation, automatic event analysis, and results management - all with the familiar user interface of the DTX CableAnalyzer.
The DTX Compact OTDR Module leverages a contractor's investment in the DTX CableAnalyzer by:
* Expanding installation revenue without expanding staff
* Shortening the technicians' learning curve for fiber testing
* Performing Basic (Tier 1) and Extended (Tier 2) fiber certification with a single tool
* Accelerating troubleshooting with a powerful, single-ended OTDR
* Delivering integrated copper and fiber reports using LinkWare
* Results Management Software
Key Specifications - DTX with OTDR
Mainframe with Compact OTDR installed: 21.6 cm x 11.2 cm x 9.1 cm (8.5 in x 4.4 in x 3.6 in) nominal
Mainframe with DTX Compact OTDR installed: 1.36 kg (3 lbs)
9.4 cm (3.7 in) diagonal, 240 dots wide by 320 dots high, passive color, transmissive LCD with backlight.
High-impact plastic with shock absorbing over mold (mainframe)
English, French, German, Spanish, Portuguese, Italian, Japanese, and Simplified Chinese
0 C to 45 C (32 F to 113 F)
Storage: -20 C to 60 C (-4 F to 140 F)
% RH operating without condensation: 0 C to 35 C (32 F to 95 F): 0% to 90%
35 C to 45 C (95 F to 113 F): 0% to 70%
LinkWare or Bellcore GR-196 V1.1
Typical trace storage capability
>200 internal, thousands on removable MMC/SD card
Class I CDRH, complies to EN 60825-2
Removable/rechargeable 7.4 V, 4000 mAh Li Lithium-ion
1 meter drop test with and without module attached to mainframe
Class I C , Class 1 CDRH complies to EN60825-2
CSA C22.2 No. 1010.1: 1992, EN 61010-1 1st. edition + amendments 1, 2
Service center calibration period is one year
316 w (-5 dBm) = peak power = 1.0 mw (0 dbm)
Continuous wave and pulse mode (2-3 Hz blink frequency)
Cleanable ferrule, UPC polish, with removable SC adapter
50/125 m or 62.5/125 m multimode
850 nm: 24 dB with 200ns, 1300 nm: 26 dB with 1 us
1310 nm: 26 dB with 10 us, 1550 nm: 24 dB w/ 10 us
850 nm: 3.7m typical, 1300 nm: 3.5 m typical
1310 nm: 3.5 m typical, 1550 nm: 3.5 m typical
850 nm: 10 meters, 1300 nm: 13 meters
1310 nm: 10 meters, 1550 nm: 12 meters
850 nm: 20ns, 40 ns, 100 ns, 300 ns. 1300 nm: 20ns, 40 ns, 100 ns, 300 ns, 1us
1310/1550: 40 ns, 100 ns, 300 ns, 1 us, 3 us, 10 us
1310 nm: 20 km, 1550 nm: 20 km
0.01 dB to 1.5d B (settable in .01 dB increments)
0.01 dB to 1.5 dB (settable in .01 dB increments)
1 m 0.005% of distance 50% of resolution IOR error event location error
Auto OTDR: <15 seconds typical Manual OTDR: 15 sec 3 minutes
