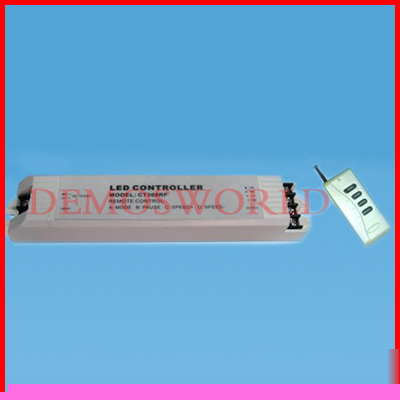

CT308RF multi-function rgb led controller+remote 12/24V
3 channel DC12/24V CT308 RF Multi-function RGB LED Controller with remote control
* Under the control of wireless, the effective remote control distance is 50 meters.
* 3 channel RGB control the max current of each channel up to 5A.
* Building Decoration: Business spaces, airports, subway.
* AD solid Word, sign and mark, signboard and billboard.
* Be used as big area back lighting source.
5A(Max) per channel, 12V: 180W; 24V: 360W
A Mode; B Pause; C Speed up; D Speed down
* A Mode: Press it to change the mode to the next one
* B Pause: Press it to make the LED stays at the present color, press it again then the color change moves on;
* C Speed up: Press it to make the change speed of the LED to a faster level Default is fastest level
* D Speed down: Press it to make the change speed of the LED to a slower level.
The input voltage should be limited in rated range.
Do not use it by over load.
Installed in suited environment.
If the load line is too long, you should link it like a ring as below.
The all load must be the module with the common anode
The power wire not connected well or no output
Reconnect the power wire or change a power supply
Lamp s power wire not connected well
Wire of this color not connected well
Line is too long or not connected well
Shorten the line or add a amplifier
1 x CT308 RF Multi-function LED Controller
