> 6 quest micro-14 dosimeters w/ calibrator in case nice
6 quest micro-14 dosimeters w/ calibrator in case nice

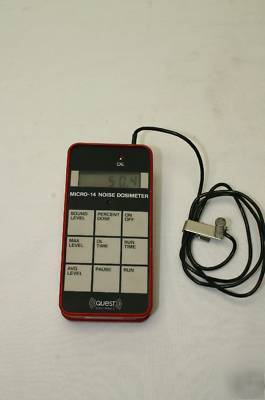

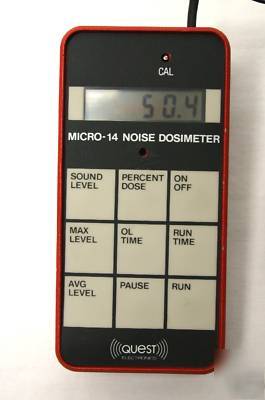

MEADOWS, INC. HAS JUST AQUIRED SOME CASES OF QUEST M-14 DOSIMETERS

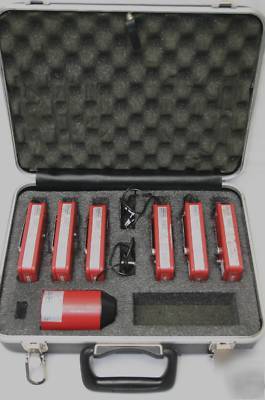

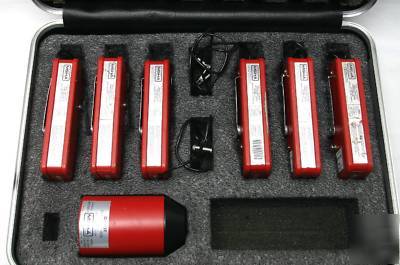

THERE ARE 6 IN EACH CASE AND A CALIBRATION INSTRUMENT
PLEASE LET ME KNOW IF YOU HAVE INTEREST IN MORE THAN 1 CASE OR INDIVIDUAL UNITS.
MANUAL IS AVAILABLE ON THE INTERNET
IEC 651 type 2 (sound level reads slow response level once each
Detector: True RMS; 63 dB pulse range and crest factor.
Range: 50-146 dB. (Percent dose and average level from threshold to 146 dB.)
Frequency Weighting: "A" (see Figure 4). Overlimit Level: 115 dB. (Consult
factory for other settings.) Thresholds: 80 or 90 dB. (Consult factory for other settings.)
Exchange Rates: 3 or 5 dB. (Consult factory for other settings.)
Criterion Levels: 85 or 90 dB. (Consult factory for other settings.)
Readout: 4-digit liquid crystal display.
Time: hours, minutes, and seconds.
Integrated sound level: 0.01 dB.
Microphone: 8 mm (1/4 inch), omnidirectional PZT ceramic with collar clip and 36-
Battery: Single 9-volt alkaline; 80-hour battery life.
Battery Indicator: Shows at least 8-hour battery life is available.

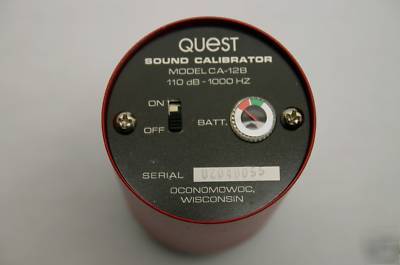

Calibration: External calibrator.
Temperature: -10 to +50 C operating; -40 to +60 C storage (battery removed).
Humidity: 0 to 95% R.H. Non-condensing.
Magnetic Field Effects: Negligible below 4000 R/M (50 oersteds) at 50 to 60 Hz.
Size: 2.5 x 5.1 x 1.3 inches (64 x 130 x 33 mm).
Weight: 11 ounces (315 grams) including battery and coverplate.
Construction: CMOS microprocessor in rugged aluminum housing with tamper-,
water-, and dust-resistant security cover.
I FULLY GUARANTEE MY PRODUCTS AND HAVE MORE TO BACK THAT!
