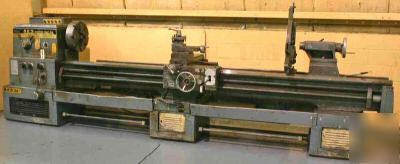

> 24" x 132" h e s engine lathe 15" ocs, 960 rpm, 15 hp
24" x 132" h e s engine lathe 15" ocs, 960 rpm, 15 hp
SERIAL ........................... 15507
MODEL ............................ TYPE 660
TYPE ............................. HES 24
SWING OVER WAYS .................. 24"
SWING IN SEMI GAP ................ 27-7/8"
LENGTH OF GAP IN FRONT OF CHUCK .. 7"
DISTANCE BETWEEN CENTERS ......... 132"
SWING OVER CROSS SLIDE ........... 15"
SPINDLE SPEEDS ................... (18) 19 TO 960 RPM
DIAMETER OF SPINDLE HOLE ......... 2"
THREADS (ENGLISH) ................ (66) 1/2 TO 152 TPI
FEED (ENGLISH .................... (44) .0003 TO .0128 IPR
THREAD (METRIC) .................. (66) .05 TO 92 MMPI
MODULE THREADS ................... (44) .0012 TO 0512 MMPR
CHUCK ............................ 15" 3 JAW
STEADY REST ...................... 10" 3 POINT ROLLER
THREAD DIAL ...................... YES
CHIP PANS ........................ YES
