Imperial ifs-50-op fryer, 50 lbs. oil capacity, open po
Fryer, 50 Lbs. Oil Capacity, Open Pot, Gas, 130,000 BTU
One year parts and labor warranty. Limited warranty on stainless steel frypot is 5 years.
Fryer, gas, open pot, 50 lb. fat capacity, snap action thermostat w/millivolt temperature control circuit, stainless steel frypot, stainless steel front and sides, 140,000 BTU

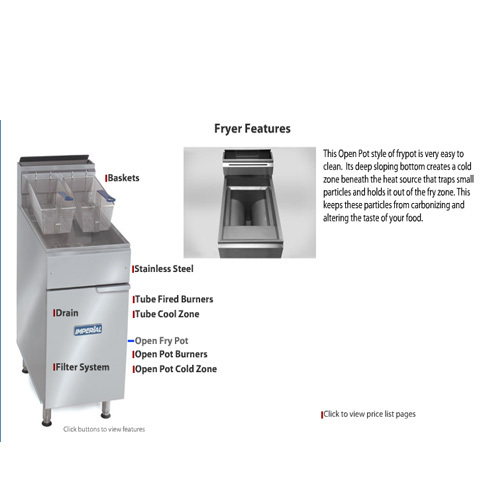

* 50 lb. open pot stainless steel frypots with radius formed edges.
* Open pot design provides easy cleaning of both the frying area and the deep cold zone.
* Frying area is 14" x 14" perfect for all purpose frying.
* No tube fired burners and no air shutter adjustments needed.
* Open pot design has a large heat transfer area and has 130,000 BTU/hr. (38 KW) output.
* Vessels are precision welded on the outside of the frypot for added durability. Welds are robotically welded for consistency.
* Large cold zone captures food particles and keeps them from carbonizing in the fry zone.
* Thermostat is placed in the center of the frypot to detect cold food placed in either basket.
* Snap acting thermostat has a 200oF - 400oF temperature range and extends
* oil life and produces a uniformly cooked product.
* 1 1/4" (32) full port ball valve for quick draining.
* Stainless steel frypot, front, sides, door, stub back,
* Large 5" (127) stainless steel landing ledge on Range Match model.
* 6" (152) stainless steel legs with non-marking feet. Plate mounted for secure support.
* AGA and CGA design certified, NSF and CE listed
* Height: 38 1/4" (excluding 6" legs)
