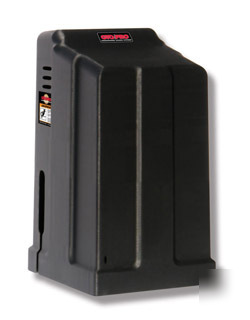

Gto pro SL100 slide gate operator sl 100
Price is for 1 NEW / In Original Box/Crate "GTO GP SL100 Commercial Duty Slide Gate Operator!!!!!
GTO's Commercial Gate Operator Model GP-SL100 is designed for continuous duty operation of slide gates. Max Gate; Weight 1200 lbs. (544.3 kg), Length 37 ft. (11.3 m) with a 32 ft. (9.8 m) opening. Assumes gate to be free sliding in good working condition on a level plane.
Available while supplies last!
* Dimensions are 27" high x 18" deep x 15" wide
* Manufacturer's 2 year warranty
* System certified with UL325 5th Edition safety standards, ETL listed
* Dual gate capable via communication link wires (14 - 20 gauge multi stranded 2-wire shielded)
* Battery back-up requires two 12 VDC, U1, 230 Amp Lead Acid Batteries, typical lawn and tractor batteries, not included.
* Transmitter and receiver not included, sold separately below.
* GTO/PRO AC Powered Gate Operator Limited Warranty:
Residential Installation - 5 years for mechanical parts; 3 years for electronics
Commercial Installation - 3 years for mechanical parts; 2 years for electronics
Contact ****@gatemotors.net for Available Accessories:
* Pluggable Loop Detectors (LOOPDT1)
* Loops (L-SC-408 - L-PO-0612)
* Driveway Vehicle Sensor (Exit Wand) - (50' - 250' lengths) (FM139 - FM141)
* Safety Photo Beams (R4222)
* Wireless Intercom with integrated Keypad (F3100)
* Keychain Transmitter (RB741)
* Universal Receiver (RB709U-NB)
Battery backup requires two 12V batteries wired inseries. Batteries (not included) but available upon request.... See our "Replacement Parts" section ......"Replacement Batteries" Model RB500 (12V) or you can use one marine battery.
* Continuous duty gate operation and all DC powered counters/safety devices
* 120 VAC 60 Hz built in power receptacles (1 amp rated)
* 25:1 direct drive worm gear with totally enclosed gear reduction
* 2500 RPM, 24V brushless DC motor - 1/2 HP equivalent
* Operating temp 5 F to 160 F
* Non back-drive gearbox with ball bearing output shaft
* 12" per second maximum travel speed
* Weatherproof high density ABS, UV resistant cover
* GTO/PRO's advanced technology commercial control board
-> Digital/optical limits with fine adjustment JOG push buttons for easy and accurate setting of limits
-> 100% solid-state motor controls circuitry
-> APS (Absolute Position System) tracking system
-> On board 3-push button control station
* Operation, diagnostic and safety alarms, reverse sensor system
* Visual LED and audible diagnostic indicators
* Plug-in loop detector inputs for exit, shadow and safety loops
* Smooth start/smooth stop - for long mechanical life expectancy
* Built in power management system utilizing a high efficiency switchmode power supply. (AC power supply, audible and visual low battery indicators, no loss of functionality in battery back up mode)
* Auto close adjustable 3 - 120 seconds delay
* Fail Safe or Fail Secure DIP switch selectable for low battery operation
* 12 VDC, 300mA, poly fuse protected auxiliary power output
