Generator portable tri fuel 12,000W - 20 hp - e-start

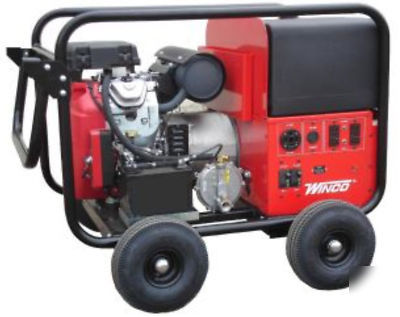

Portable Tri-Fuel Generator with Wheel Kit
12,000 Watt - 20 Hp Honda OHV Engine - Electric Start - Tri-Fuel - Portable - Includes Wheel Kit
* Heavy Duty Winco 12,000 Watt Portable Tri-Fuel Generator with a 20 Hp Honda OHV Engine and Electric Start - Includes Wheel Kit
* Our 12,000 Watt Tri-Fuel Generator starts fast and easy in all weather and switches fuels while running
* Winco's powerful high quality tri fuel generators feature inherent voltage regulation and protection for optimum reliability and safety
* 15 gallon gasoline capacity tank runs 8.98 hours at full load
* Engine: Highly efficient 20 Hp Honda GX620 OHV
* Rated Watts: 10,800 Continuous Watts
* Surge Watts: 12,000 Surge Watts
* Run Time: 8.98 Hours at full load
* Four 20 Amp 120V Straight Blade (NEMA 5-20R) Receptacles
* One 30 Amp 120/240V Twist Lock (NEMA L14-30R) Receptacle
* One 60 Amp 120/240V Straight Blade (NEMA 14-60R) Receptacle
* Fuel Tank Capacity in Gallons: 15
* Fuel Consumption: Gasoline - Full Load: 1.67 GPH
* Fuel Consumption: Propane - Full Load: 2.2 GPH
* Fuel Consumption: Natural Gas - Full Load: 195 CFH
* Noise Level - Full Load: 78 dB at 7 Meters
* Fuel Type: Gasoline, Propane, or Natural Gas
* Dimensions: 39.5" L x 26" W x 26" H
* Optional Item: Model VIRGC6K - Generator Cover - protects your generator from the elements when not in use (please inquire)
* Optional Item: Model VIRLVM - Line Voltage Meter - our compact voltmeter can be plugged into the 120V receptacle on any of our portable generators to assure your that your generator is functioning properly and to assist in isolating continuity problems in extension cords
* Optional Item: Model VIRLPFS - Low Pressure Fuel Solenoid (12V) - If you intend to run your generator unattended for long periods of time we highly recommend our electric fuel solenoid be installed in the fuel line and close to the generator. Our solenoid is a positive flow shut-off valve which shuts off the fuel should the engine unexpectedly stop running - this will prevent costly and dangerous fuel leakage at the connection point
* Please allow 45 days for delivery
* 1 Year Parts & Labor Warranty on Entire Unit
* 2 Year Parts & Labor Warranty on the Engine
