144 / 432 mhz diplexer with n female connectors
This is a 144 / 432 MHz diplexer with N type female connectors.
The diplexer is supplied with a test sheet detailing measurements made on the unit.
Typical insertion loss on both 144 and 432 MHz ports is 0.3 dB with isolation between the ports of 45 dB. A surge arrestor is also fitted to the diplexer.
Ideal for use with dual band 2m / 70 cm antennas.
Several of these diplexers are in use with amateur radio voice repeaters, D-STAR repeaters and APRS internet gateways where dual band antennas are being used.
We also make diplexers for other frequency ranges. see our webpage for more information:
http://www.crosscountrywireless.net/diplexer.htm

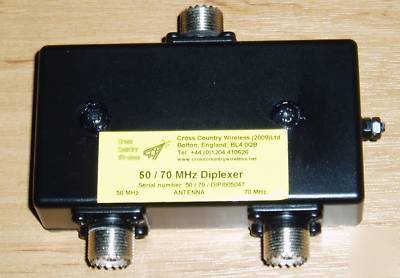

Please note the photo shows one of our 50 / 70 MHz diplexers with SO-239 connectors. We've recently changed the box and this photo shows the new box in detail.
At present all filters and diplexers are built to order and take about 10 days from receipt of order to dispatch. It also means if you have a particular requirement i.e. connectors or non-standard frequencies this can be included.
