> Lot 10 cooper 6 pos pcb terminal blocks barrier strips

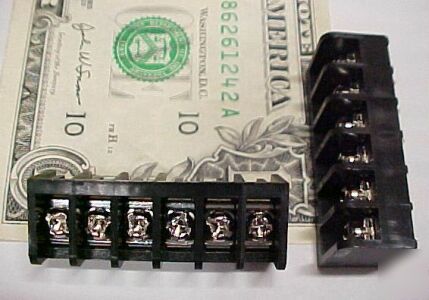

Lot 10 cooper 6 pos pcb terminal blocks barrier strips
Overall height (excluding pins): .504"
Pin spacing: .250" (1/4") OC (on centers)
Pin dimensions: .048" x .032" x .170" long
The part number CBD502206 breaks down as follows:
Series A5000 & Series CB5000 Single Row Terminal Blocks
Center Spacing: .250 (6.35 mm)
Screw Size: #3-48 zinc plated philslot SEMS screws, wireready standard
Distance Between Barriers: .20 (5.08 mm)
Recommended PCB Hole Diameter: .062 (1.57 mm)
Operating Temperature: 105C (221F) max., -40C (-40F) min.
Approvals: UL E62622; CSA LR15364; CE Certified
(8 to 11) lots: Three pounds
(12 to 15) lots: Four pounds
(16 to 20) lots: Five pounds
