3 ch ecg holter recorder+ holter analyzer holter system

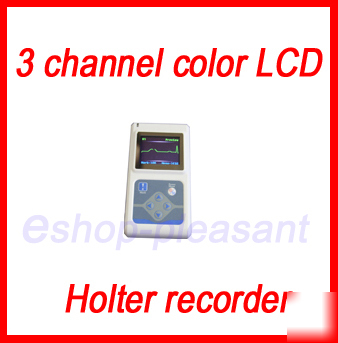

3ch Holter recorder+Holter Analyzer
Apply Demix technology, ensures the accuracy of QRS templates,includes N (Normal), V (Ventricular Ectopy), S (SVE), U (Unknown), P(Pacemaker), A (Artifact). All the templates can be combined or separated asindividual beats. beats can be superimposed. Weak signal can be identified suchas P wave.
VE, SVE, aberrant beats, V-Tach, V-Pair, V-Bigeminy, Tri-geminyetc.
HRT is the most powerful ECG-related risk predictor for assessing thedeath risk following myocardial infarction. The predictive value is comparablewith that of the LVEF.
Unique pacemaker analysis is suitable for various models i.e. AAI,VVI, DDD, DDR pacemakers.
Time domain and Spectral domain HRV analysis, superlower HRVanalysis
* Heart Rate Variability is analyzed in both Time Domain and Frequency.The top of the HRV display shows the Poincare-Lorenz scatter plots. The lowerleft shows the Frequency power graph. The range boundaries for LF, LF and HF canbe adjusted. The lower right shows the Time Domain histogram. Day and nighttimes can be entered for Sleep Apnea and for A-Fib.
HRT (Heart Rate Turbulence) Analysis
Atrial Fibrillation is very important for the cardiologist concern.Holter ECG is an excellent test to detect transient A-Fib.
TWA (T-wave alterans) Analysis
Unknown for the past 40 years, T-Wave Alternans (TWA) in excess of 20micro-volts have been in Holter recordings but have been undetected. TWA is astrong predictor of V-Tach and other serious cardiac abnormalities. It takesless than 10-seconds to do a complete 24-hour TWA analysis.
You can check for TWA anywhere in teh 24-hour ECG file. Not only canyou detect TWA in the ECG file, this software lets you view the ECG showing theactual TWA, so that you can verify and validate the presence of real TWA.
The TWA algorithm detects two modes of TWA. Mode 1 is thebeat-to-beat change in T-Wave amplitudes exceeding 20 micro-volts, as shown inthe adjacent picture. Mode 2 is the gradual up and down changes of T-waveamplitudes over a series of several beats.
* 12-lead Color LCD Holter recorder
* Compact size, light weight
* Fully programmable, high Fidelity
* Channel: 3 digital recording channels for 12-lead
* Resolution: 12 bit sampling
* Frequency response: 0.05-60Hz
* Recording time: 24 hours, full disclosure, no data compression, 3channel ECG
* Storage:2Gbuilt-in flash memory
* LCD display: ECG waveform and lead number
* Weight: 75 grams (battery not included)
* Lead: 7 wire patient cable
1. Holter software CD withdongle key: 1set
2.3-channel Holter recorder: 1unit
3. 5-lead Holter lead wire: 1 set
