SRC4193, high end sample rate converter, qty 5
High End Sample Rate Converter

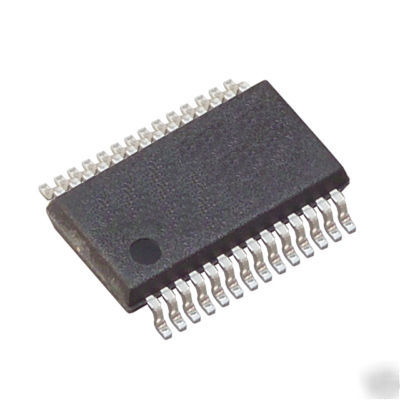

SRC4193IDB, High End Sample Rate Converter, 28 Pin SSOP, Quantity 5, Burr Brown/Texas Instruments.
The SRC4193 is a asynchronous sample rate converter designed for professional and broadcast audio applications. The SRC4193 combines a wide input-to-output sampling ratio with outstanding dynamic range and ultra low distortion. Input and output serial ports support standard audio formats, as well as a Time Division Multiplexed (TDM) mode. Flexible audio interfaces allow the SRC4193 to connect to a wide range of audio data converters, digital audio receivers and transmitters, and digital signal processors.
The SRC4193 is a software-controlled device featuring a serial peripheral interface (SPI) port, which is utilized to program all functions via internal control registers.
The SRC4193 can be operated from a single +3.3V power supply. A separate digital I/O supply (VIO) operates over the +1.65V to +3.6V supply range, allowing greater flexibility when interfacing to current and future generation signal processors and logic devices.
* AUTOMATIC SENSING OF THE INPUT-TO-OUTPUT SAMPLING RATIO
* WIDE INPUT-TO-OUTPUT SAMPLING RANGE: 16:1 to 1:16
* SUPPORTS INPUT & OUTPUT SAMPLING RATES UP TO 212kHz
* DYNAMIC RANGE: 144dB ( 60dbFS input, BW = 20Hz to fs/2, A-Weighted)
* THD+N: 140dB (0dbFS input, BW =20Hz to fs/2)
* ATTENUATES SAMPLING AND REFERENCE CLOCK JITTER
* HIGH PERFORMANCE, LINEAR PHASE DIGITAL FILTERING WITH BETTER THAN 140dB OF STOP BAND ATTENUATION
* FLEXIBLE AUDIO SERIAL PORTS
* SUPPORTS 24-, 20-, 18-, or 16-BIT INPUT AND OUTPUT DATA
(All output data is dithered from the internal 28-Bit data path)
* LOW GROUP DELAY OPTION FOR INTERPOLATION FILTER
* DIRECT DOWNSAMPLING OPTION FOR DECIMATION FILTER
* SPI PORT PROVIDES ACCESS TO INTERNAL CONTROL REGISTERS
* PROGRAMMABLE DIGITAL OUTPUT ATTENUATION
* 256 steps:0dB to 127.5dB,0.5dB/step
* OPERATES FROM A SINGLE +3.3 VOLT POWER SUPPLY
* DIGITAL AUDIO WORKSTATIONS
* AUDIO DISTRIBUTION SYSTEMS
* BROADCAST STUDIO EQUIPMENT
* GENERAL DIGITAL AUDIO PROCESSING
Quantity 5 ....... New Parts !!!!!
