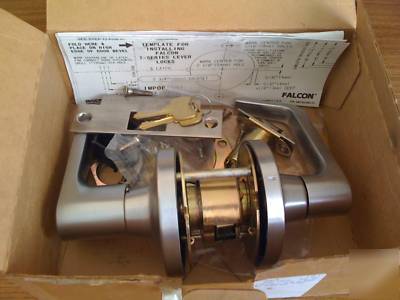

> Falcon T581 storeroom lever lock heavy duty grade 1
Falcon T581 storeroom lever lock heavy duty grade 1
Note: Storeroom function means the outside handle is always locked. You retract the latch with a key.
Door Thickness: 1-3/4"to 2-1/8"standard. Thin door adapter kit (A30775-000-00) required for doors thinner than 1-3/4".
Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
Attachment: Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.
Handing: Locks are non-handed.
Cylinders: Drilled with 6 pin chambers, pinned in 5. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
Keyways: G keyway standard on standard cylinders.
Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers no inserts) material finished to match mating parts.
Latches: 1/2" bolt projection, UL listed with latch faceplates 2-1/4" x 1-1/8" with square corners standard. 3/4" projection, UL listed latch with 2-3/4" backset also vailable. Adjustable front standard.
Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
Screws: Furnished with combination screws for use in wood or metal doors and frames.
ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 1
I'm the only Certified Master Locksmith in Eugene, Oregon.
