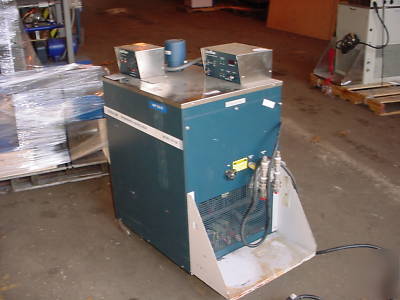

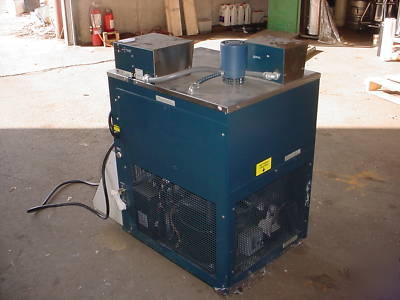

15,345.00 btu/hr 1.25 ton hx-150 neslab chiller


G-3084 15,345 btu/hr AIR COOLED CHILLER
Model/serial no. D96298064, MODEL HX-150 Cool Flow
Manufacturer NESLAB Instruments, Inc.
Dimensions 22" x 36" x 39" overall size
Construction/configuration stainless contacts vertical
Inlets/outlets (supply, return, tap, drain) .75" npt

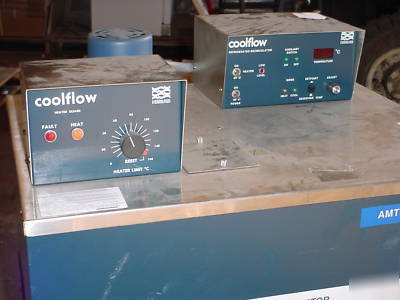

General data r-22 ref,HYDROmax MDL MBI-0818-75,digital+analog controls
Motor .33 hp pump motor, approx 3.76 gpm
Electrical data 200-208 V, 14 amp, 1 ph
