Wavetek/datron 9000 multifunction multimeter calibrator

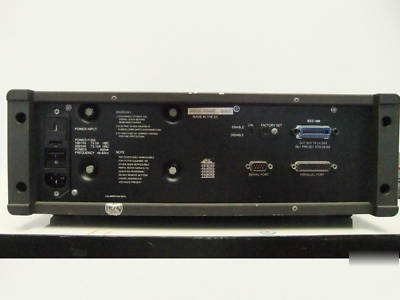

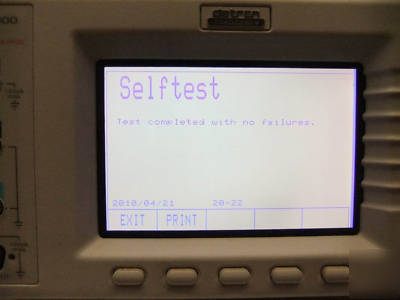

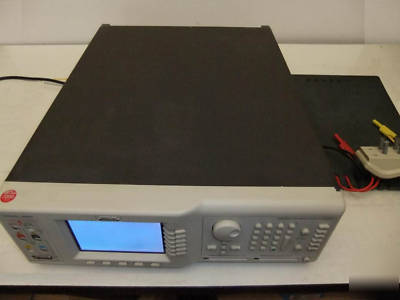

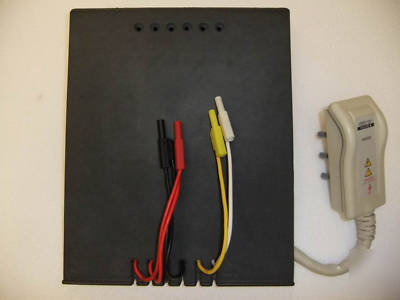

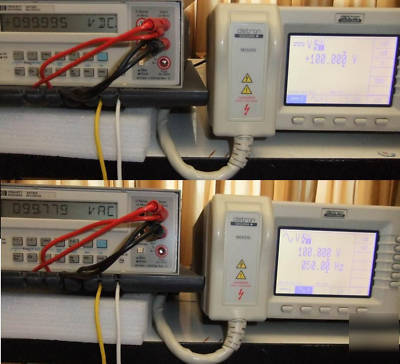

Multifunction Multimeter calibrator with wavetek 9005 Work mat. The unit pass self test with no error. Line voltage 100-120VAC and 220-240VAC 48-62Hz. The unit has some scratches/scuffs from previous use. The corners of front panel were cracked. Please see picture. The multimeter shown in picture is not included.
Wavetek 9000 Performance Characteristics:
DC Volts Maximum Range: 1050 V
DC Volts Maximum Resolution: 1 uV
DC Volts Basic 1 yr accuracy: 0.005 %
AC Volts Maximum Range: 1050 V
AC Volts Minimum Frequency: 10 Hz
AC Volts Maximum Frequency: 100 kHz
AC Volts Maximum Resolution: 1 uV
AC Volts Basic 1 Year Accuracy: 0.008 %
DC Current Maximum Range: 20 A
DC Current Maximum Resolution: 1 nA
DC Current Basic 1 yr accuracy: 0.008 %
AC Current Maximum Range: 20 A
AC Current Maximum Resolution: 1 nA
AC Current Basic 1 Year Accuracy: 0.027 %
Resistance Minimum Range: 0 Ohm
Resistance Maximum Range: 400 MOhm
Resistance Maximum Resolution: 10 uOhm
Resistance Basic 1 yr accuracy: 0.006 %
Frequency Accuracy: 0.0025 %
Wavetek 9000 Measurements/Features:
variable capacitance to 40 mF
Automated cable configuration
Built-in diagnostic self-test
