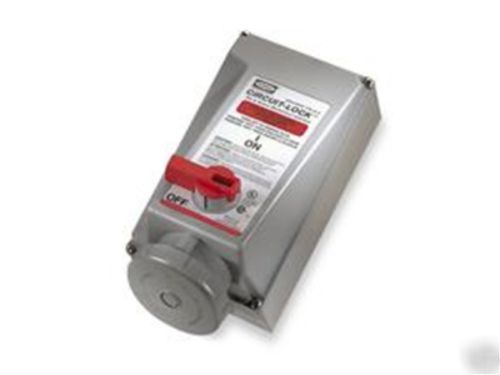

New hubbell mechanical interlock receptacle (unfused)
Item Summary: Circuit-Lock Watertight Mechanical Interlock Devices
Space-saving, nonmetallic units incorporate disconnect and receptacle.
This meets the NEC requirement for a separate disconnect means within sightof all motor loads. Arc protection: The devices cannot be turned onwithout the proper plug fully inserted, and with power On, the plugcannot be removed. Enclosure can be connected to metallic conduitwithout interfering with ground continuity.
Uses: For welders, conveyors, portable motors, and food processing equipment in factories, convention centers, and jobsites.
Lockable in Off position for compliance with OSHA lockout requirements UL Type 4X, 12K watertight enclosuresUse appropriate Class J time-delay fuse
Circuit Lock Unfused Mechanical Interlock Receptacle, Current Rating 100 Amps,Voltage Rating 480 Volts, Power Rating 50 HP, Phase Three, Number ofPoles 3, Number of Wires 4, Accepts Plug Hubbell HBL4100P7W, Pin and SleeveItem Specifications:
