Hydraulic 2 way flow divider 3/8" bsp. flow 1 - 3 l/min
Hydraulic 2 Way Flow Divider 3/8" bsp. Flow 1 - 3 l/min

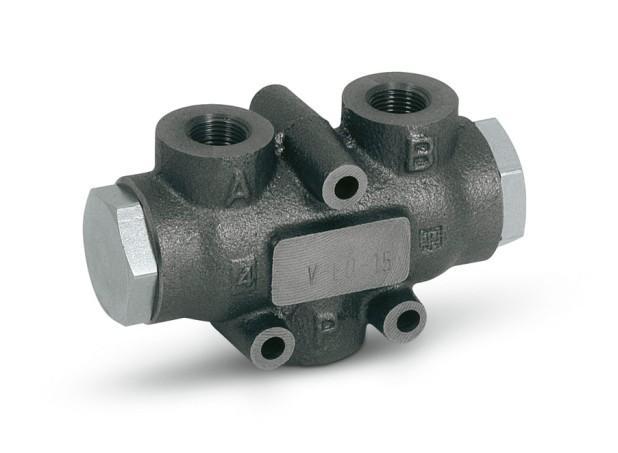

2 WAY HYDRAULIC FLOW DIVIDER 3/8" PORTS - V1001
These valves allow the division of inlet flow into two equal parts (50/50) and they unify in the reverse direction, independently of any pressure changes and flow. These valves are used when two equal actuators, that are not mechanically coupled, supplied by the same pump and controlled by a single distributor, must move simultaneously both at input and output.
* Seals: Buna N standard and Teflon
* Tightness by diameter combination
* Max working pressure 250 l/min
Applications: Connect P to the pressure flow and A and B to the actuators.
