CREASELINE23SRA4 23CM. creasing machine card creaser
View a video demonstration of this machine at /bookleteer (select Creaseline Range Demo)

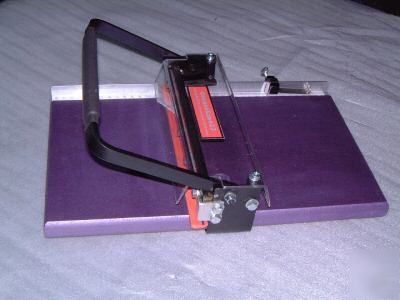

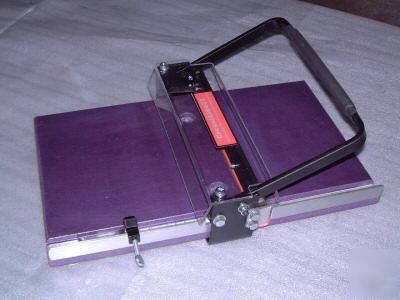

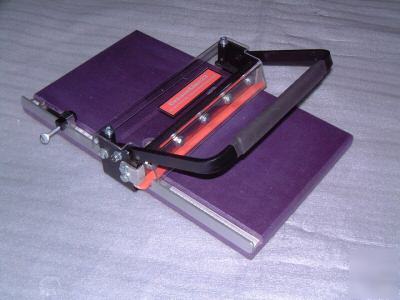

CreaseLine 23 is an SRA4 (short edge) creasing machine using the industry standard Blade and Matrix method, The only method proven to eliminate cracking on digital stock The ideal creasing/scoring machine for the printer or serious card maker giving a professional finish to your products. Over 1800 similar machines now in use in the UK&Europe Brand new in the box.
Sidelay registration with square adjustment, Metric rule front and back to assist setting. .Dims width 280mm length 390mm Ht 150mm Wt 6 kg.
For samples contact me through the site or call 01728 833730
Q Will the CreaseLine 23 crease/fold laminated work.?

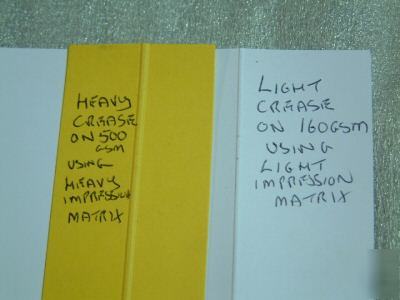

A Blade and Matrix is a creasing method where a steel(2pt) blade with rounded leading edge is pressed into the card and impesses it into a lower concave forming die strip called the matrix. for different stocks the width of the matrix must receive the blade width + twice the card width. So you will see that a single width of marix would not give satisfactory results on a broad range of stocks.The 2 matrix dimensions used on CreaseLine 23 will give these results
