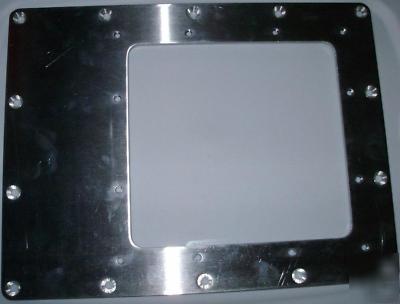

1/4X13X17 aluminum plate M48 M60 bridge launcher access
19207 11590931 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM U.S
AAGR CROSS-SECTIONAL SHAPE STYLE 26 FLAT
ABGL WIDTH 17.000 INCHES NOMINAL
ABMW PERIPHERAL SHAPE STYLE 22 RECTANGLE, MULTI HOLES
ABRY LENGTH 13.000 INCHES NOMINAL
ADNU CORNER RADIUS 0.500 INCHES NOMINAL
ADNV HOLE QUANTITY ALONG LENGTH 4
ADNW HOLE QUANTITY ALONG WIDTH 10
ADNY DISTANCE BETWEEN HOLES ALONG LENGTH 4.000 INCHES NOMINAL
ADNZ DISTANCE BETWEEN HOLES ALONG WIDTH 4.750 INCHES NOMINAL
ADPC DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG L 4.000 INCHES NOMINAL
ADPD DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG W 4.750 INCHES NOMINAL
ADPR BODY THICKNESS 0.250 INCHES NOMINAL
ADQB SECURING DEVICE TYPE SPECIAL
AGAV END ITEM IDENTIFICATION FOR BRIDGE LAUNCHER,M48,M60
N/A FOR BRIDGE LAUNCHER,M48,M60
