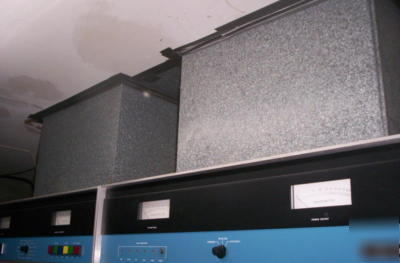

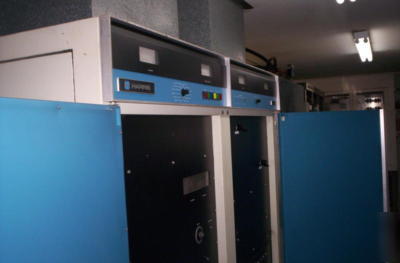

Harris mw-5A 5KW am transmitter
HARRIS MW-5A 5KW AM TRANSMITTER ON 1300 AM FOR SALE TO BE PICKED UP IN AUSTIN, TEXAS. IT IS A HARRIS MW-5A.
Power Input:208/230 Vac, 60 Hz closed Delta or 380 Vac, 50 Hz Wye.
Power Consumption: 9.4 kVA at 5000 watts carrier and no modulation.13.0 kVA at 5000 watts carrier and 100% modulation.
Audio Input:10 dBm 2 dB, 600/150 ohms balanced.
+1 dB from 20 to 10,000 Hz at 95%
Less than 2% at 20 to 10,000 Hz, 95% modulation.
Rated 5000 watts. Power reduction to 1000 watts
Meets or exceeds FCC and CCIR re quirements.
-80 dB. Meets or exceeds FCC or CCIR specifications.
Less than 2% at 100% modulation.
60 dB or better below 100% modulation at 5000 watts output.
125% positive peak program modulation capability at 5600 watts.
120 cubic feet meters), packed (3.398 cubic feet)
