Schleuniger ecostrip 9300 automatic wire cut & strip

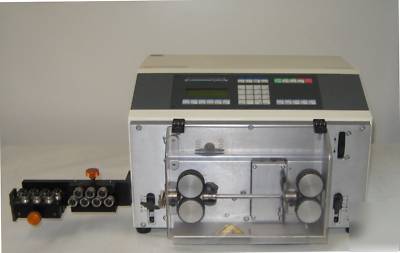

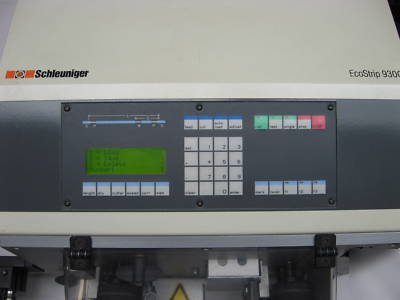

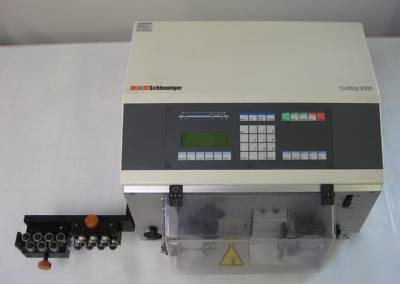

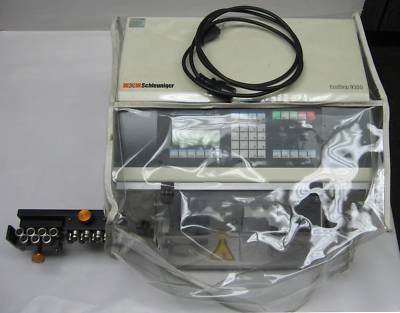

Schleuniger EcoStrip 9300 Automatic Wire Cutting and Stripping Machine
This machine was used in a custom wire harness shop and It is in perfect working order.

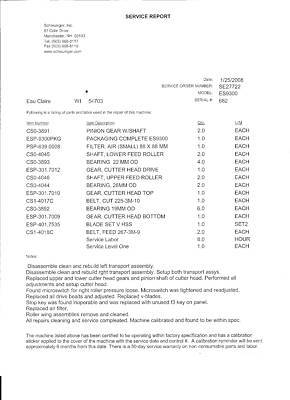

It was overhauled by Schleuniger in January of 2008 and has been in storage in a climate controlled facility since December of 2009. Documentation of the repairs will be supplied.
For more information on this machine please visit the Schleuniger's site here:

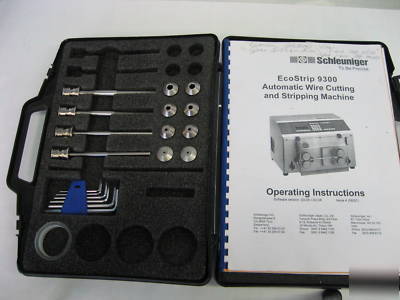

Included are the following standard items:
2, 3, 5 and 7mm wire tubes and guides
Feed rollers - standard steel knurled surface

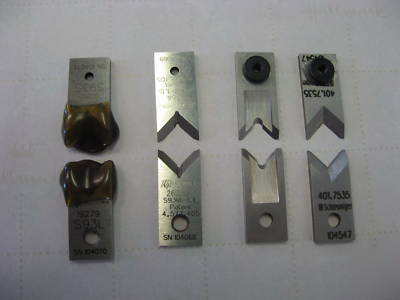

The following sets of blades will be included:
1 new set of V-Blades from Mechtrix
1 slightly used set of 2.8 mm radius blades from Schleuniger
1 slightly used set of 1.1mm radius blades from Mechtrix
1 used set of Schleuniger 104547 V-blades
To view the machine in operation here:
http:// /watch?v=46K_G6B_5cY
Some specifications from the Schleuniger web site:
Wire / Cable Types: Stranded wire / cable Solid wire / cable
Multi-conductor cable (jacket only)
Jacketed flat cable (ie. telephone cable)
Max. Cable Diameter (O.D.): 6 mm (0.235")
Max. Width for Flat Cable: Width: Up to 13 mm (0.511") depending on cable design

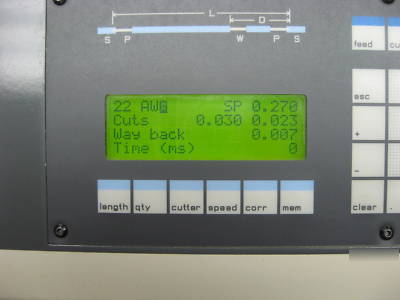

Wire Size Range: Stranded: Up to 6 mm (10 AWG) *
Solid: Up to 1.5 mm (16 AWG) *

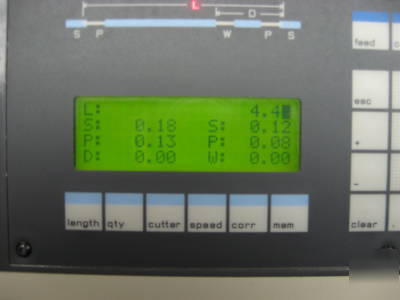

Max. Programmable Total Length: Up to 999.999 m (3280 ft)
Stripping Length: Up to 999.9 mm (3.28 ft) both ends
Max. Pull-off Length: 100 mm (3.94") right end *

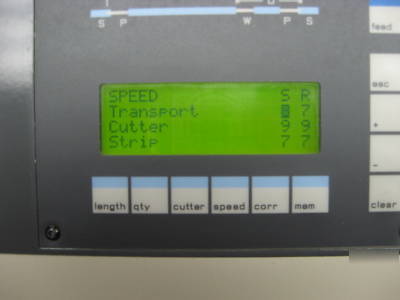

Transport Speed: 147 - 1680 mm/s (5.78" - 66.14"/s) on 10 levels
Transport Rollers: Standard: Knurled steel rollers
Optional: Diamond or rubber coated rollers
Optional: Various blade types are available

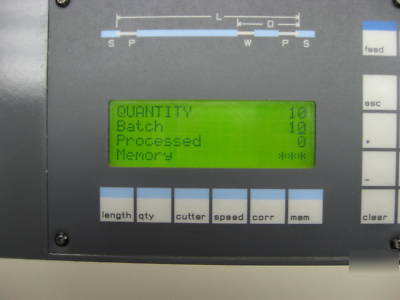

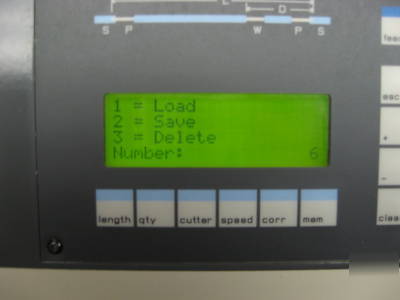

Program Capacity: 250 wires / cables
Interfaces: Standard: For hot stamping machines, prefeeding machines, wire stacking machines, coiling machines
Optional: RS 232, robotic interface
Power Supply: 95 - 132 VAC / 190 - 264 VAC
Dimensions: (L x W x H) 410 x 370 x 275 mm (16.14" x 14.56" x 10.83")
CE-Conformity: The EcoStrip 9300 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
* Some cables outside this scope of application can also be processed using the EcoStrip 9300.
