> Jrc NJM3772 NJM3772FM2 PLCC28 step motor driver

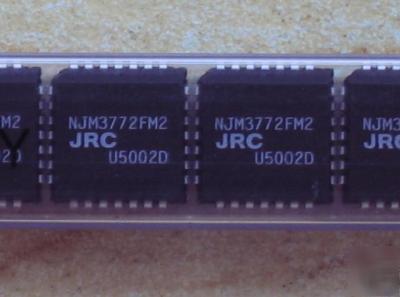

Jrc NJM3772 NJM3772FM2 PLCC28 step motor driver
The NJM3772 is a stepper motor driver, which circuit is especially developed for use in microstepping applications in conjunction with the matching dual DAC(Digital-to-Analog Converter)NJU39610.
The NJM3772 contains a clock oscillator, which is common for both driver channels, a set of comparators and flip-flops implementing the switch control, and two H-bridges with internal recirculation diodes. Voltage supply requirements are +5V for logic and +10 to +45V for the motor. Maximum output current is 1000mA per channel.
