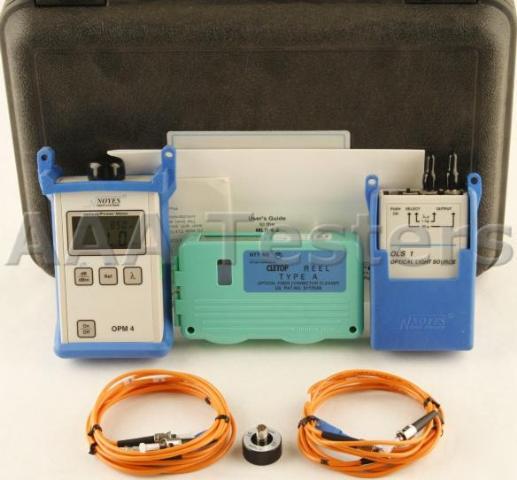

Afl noyes mlp 4-2 mm light pack fiber loss test set pm
* Noyes OPM 4-2C Optical Power Meter
* Noyes OLS 1-2 Optical Light Source
* Cletop Optical Fiber Connector Cleaner w/ Instruction Sheet
AFL Telecommunications Noyes MLP 4-2 Multimode Fiber Optic Loss Test Set
Test 850nm & 1300nm Wavelengths!
* Loss Measurements at 850 and 1300 nm
* Multimode and Singlemode Testing
* Set Reference for Each Wavelength
* Small Size, Field Portable, Battery Operated
The MLP 4-2 Test Kit offers accurate fi ber optic testing at an affordable price. Combining the OPM 4-2C Optical Power Meter and the OLS 1-2 Optical Light Source in a rugged carry case, the MLP 4-2 is a complete Test Kit for fi ber optic LAN's, and WAN's.
Used during installations or maintenance, the MLP 4-2 performs insertion loss measurements on multimode fi ber at 850 and 1300nm, as well as singlemode fi ber at 1300nm. The auto zero feature stores reference values at each wavelength for direct loss readings in dB.
The OLS features 850 and 1300 nm LED output from a single output port and is easy to operate with only a power button and a wavelength select button. Each wavelength may be transmitted individually at CW or with Wave ID. When transmitting with Wave ID, the OLS1 supports transmitting pairs of wavelengths in an alternating pattern. Associated with each operating condition, the designated LED indicator will illuminate to identify the currently enabled operating mode and emitted wavelength(s) along with battery charge status and external power presence. The OLS1 output port is equipped with UCI based removable adapters to allow the output connectors to be inspected and cleaned.
The OPM4-2 features automatic wavelength identification and switching (Wave ID) when used with the OLS1 and stores optical references for each calibrated wavelength. A large dual-wavelength LCD display with backlight shows measured power [dBm or ?W] or insertion loss [dB], calibrated wavelengths [nm], wavelength ID, and estimated remaining battery life. The OPM4-2 optical input port accepts a variety of Noyes thread-on style adapter caps (ordered separately) to meet a wide range of testing requirements.
The OPM4-2 and OLS1 offer long battery life from common AA alkaline batteries. The MLP4-2 test kit is fully N.I.S.T. traceable.
>60 hrs. typical with 9V Alkaline
5.5 x 3.2 x 1.5in (14 x 8 x 3.8cm)
-20dBm @ 850nm, -20dBm @ 1300nm
80 hrs. typical operation with 9V alkaline,
4.6 x 2.6 x 1.2in (11.7 x 6.6 x 3.2cm)
