> Harris semiconductor transistor array, CA3046, gp.25PC.
Harris semiconductor transistor array, CA3046, gp.25PC.

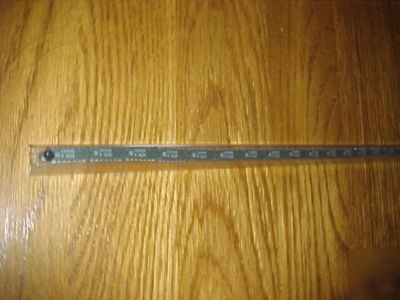

Harris Semiconductor Transistor Array, CA3046, GP.25pc.
New in Package. package contains 25 transitors per tube. Harris Semiconductor CA3046. email any questions.View My Other Items For Sale.
Low Noise Figure . . . . . . . . . . . . . . 3.2dB (Typ) at 1kHz
5 General Purpose Monolithic Transistors
Wide Operating Current Range
Full Military Temperature Range
BE Match . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mVIO Match . . . . . . . . . . . . . . . . . . . . . . . . . . . 2mA (Max)
Three Isolated Transistors and One Differentially
Connected Transistor Pair for Low Power Applications
at Frequencies from DC Through the VHF Range
Custom Designed Differential Amplifiers
Temperature Compensated Amplifiers
See Application Note, AN5296 Application of the
CA3018 Integrated-Circuit Transistor Array for
The CA3045 and CA3046 each consist of five general
purpose silicon NPN transistors on a common monolithic
substrate. Two of the transistors are internally connected to
form a differentially connected pair.
The transistors of the CA3045 and CA3046 are well suited to
a wide variety of applications in low power systems in the DC
through VHF range. They may be used as discrete transistors
in conventional circuits. However, in addition, they
provide the very significant inherent integrated circuit
advantages of close electrical and thermal matching.
