6" w 18" l brown & sharpe 618 visual grind visual surfa
6" W 18" L Brown & Sharpe 618 VISUAL GRIND VISUAL SURFA

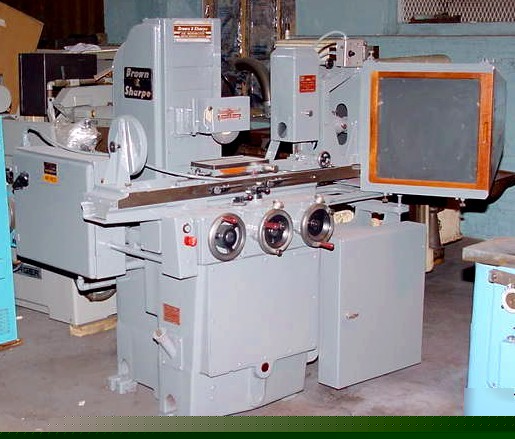

6" Width 18" Length Brown & Sharpe 618 VISUAL GRIND VISUAL SURFACE GRINDER
6" X 18" BROWN & SHARPE HYDRAULIC SURFACE GRINDER
MODEL: 618 MICROMASTER SERIES VISUAL GRINDER
HEIGHT OF WORK GROUND WITH 8" WHEEL ............... 15"
GRINDING WHEEL SIZE ................ 8" X 1/2" X 1-1/4"
MAXIMUM LONGITUDINAL TRAVEL ....................... 22"
HYDRAULIC POWERED LONG. TABLE SPEED ..... 5' - 100' FPM
CROSS FEED TRAVEL .................................. 7"
CROSS HANDWHEEL, GRADUATED TO READ TO ......... 0.0002"
CROSS FINE FEED KNOB, GRADUATED TO READ TO .... 0.0001"
VERTICAL TRAVEL OF SPINDLE .................... 15-3/4"
VERTICAL MOVEMENT OF SPINDLE PER HANDWHEEL REV... 0.05"
VERTICAL HANDWHEEL, GRADUATED TO READ TO ...... 0.0002"
VERTICAL FINE FEED KNOB, GRADUATED TO READ TO . 0.0001"
-TRUE IMAGE OPTICAL PROJECTION SYSTEM
-VISUAL CONTROL OVER ALL GRINDING OPERATIONS
-WATCH QUALITY CONTROL IN PROGRESS
-GRIND TO ANY DRAWING ON THE SCREEN OR EVEN THE WORKPIECE
-STANDARD SQUARE CHART ASSEMBLY
-VARIABLE LIGHT INTENSITY CONTROL
FINE FEED KNOBS FOR CROSS & VERTICAL FEEDS (.0001" GRAD.)
6" X 12" BROWN & SHARPE PERMANENT MAGNETIC
B & S "SUPER-PRECISION" SPINDLE
3/60/220-440 VOLT ELECTRICS ,CURRENTLY WIRED FOR 460 VOLTS
