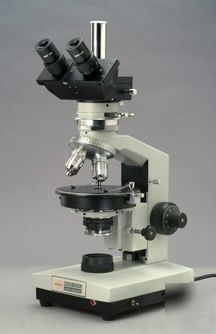

New trinocular polarizing microscope w compensators
Advanced Research Polarizing Microscope
Research Polarizing Microscope is a principal piece of equipment used by the Geologists to observe the optical properties of minerals. It has indispensable applications for petrography, crystallography, geology, mineralogy, ceramics, toxicology, chemical microscopy or detecting defects in semi-conductors, finding stress points in metals, glass & textiles etc.
Large Rectangular heavy base having electrical fittings concealed inside.
Microscopes are available with Monocular, Binocular & Trinocular heads with 45 inclined observation tubes. Interpupillary Distance & Dioptric adjsutments are provided in Binocular & Trinocular Heads.
Centrable precise ball bearing quadruple having objective mounts & ribbed grip for easy rotation.
Compact Ball bearing Rotating Stage, 140mm dia., graduation with vernier, lock & stage specimen clips.
Coaxial focusing is provided with coarse tension adjustment ring and graduated slow motion knobs. Adjustable safety lock is attached to prevent the breakage of specimen slides.
Koehler's Illuminator with pre-centered 20W Tungsten Halogen source & integral electric transformer with intensity control. Input Voltage 220 or 110V.
Built-in focusable Bertrand Lens with center adjustment. Built-in Analyzer removable from optical part. Analyzer can be rotated 90 with vernier reading to 6'. Compensator 1 Lambda, 1/4 Lambda & Quartz Wedge can be inserted in the tube as per requirement.
Gypsum (1st. order red compensating plate, 560nm). Mica (145nm) & Quartz Wedge (I-IV order).
Stress less flat achromatic DIN Objectives
PF4x/0.10, PF10x/0.25 & PF40x/0.65 SL
Fully rotatable Polarizer on a strain free N.A 1.25 abbe condenser with iris diaphragm.
Vinyl Dust Cover, Duster, Cleaning Brush, Filters, Spare Bulb & fuse with Operating Instructions Manual.
In full mould styrofoam container.
Detachable Mechanical Stage $40.00
