Vestil full featured deluxe pallet truck PM5-2748

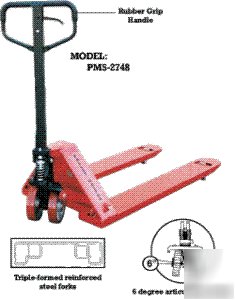

Vestil Full Featured Deluxe Pallet Truck PM5-2748
Full Featured Deluxe Pallet Truck PM5-2748
The full featured ergonomic pallet truck is an economical way for one person to move heavy pallet loads without the use of a fork truck. Proven ergonomic design has been tested for providing years of reliable usage. This pallet truck includes two articulating steering wheels and two front load rollers. Ergonomic design requires only 75 lbs. of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. Equipped with internally mounted solid steel adjustable push rods. Spring loaded loop handle automatically returns to vertical position when not in use. Chrome-plated hydraulic pump piston for long seal life. Capacity is 5,500 lbs.
Sloped and rounded fork nose design
User friendly entry and exit rollers
Service range is 2-7/8" lowered to 7-3/4" raised.
Forks are 48" long and 7" wide
Quick lift pump design requires only 12 strokes for full travel
6 degrees articulating wheel assembly for uniform axle loading on uneven floors
20 inch model also available
Other Full Featured Deluxe Pallet Trucks
Click the above for Approval Drawing PDF. Click the for Parts List PDF. (If you have trouble viewing the PDF in the browser, try "right clicking" the icon and clicking "save target as" to save the PDF to your preferred location
