> 5C bison lathe collet chuck + "set-tru" adapter plate

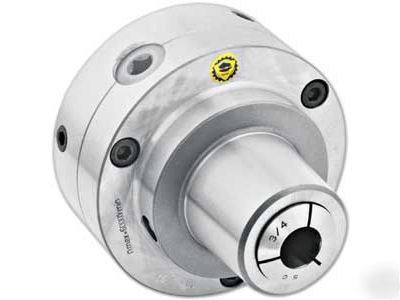

5C bison lathe collet chuck + "set-tru" adapter plate
Standard Accessories Included in this SET.
+ "Set-Tru" 5" Bison 5C Collet Chuck
+ 4 Fine Micro Adjustment Screws
* "Set-Tru"5" Bison 5C Collet Chucks are Designed for use with all 5C Collets.
* They can be used for all turning, facing, boring, grinding, and milling operations on center lathes and grinding machines.
* The simple key operated scroll provides a uniform, distortion free clamping of the workpiece and low collet exchange time.
* Four fine adjustment screws are used to set up the chuck on it's mounting plate to get precision within .0004" T.I.R.
* Body is made of high quality forged steel
* Forged scroll fully hardened & ground for longer life.
* Collet Capacity 3/64" x 1-1/8"
5" 5C Collet Chucks Accepts "Set-Tru" Bison Adapter Plates.
As part of this Selling Set; Which One 1 Fits Your Spindle Nose?
Hardinge 4 Degree Tapers Special Order.
5" "Set-Tru" Bison A-Type Adapter plate
3 A1 & A2 Type adapters to choose one from
5" "Set-Tru" Bison D-Type Adapter plates
4 D1-Type adapters to choose one from.
D1-3 # of studs 3 Stud Diameter 9/16"
D1-4 # of studs 3 Stud Diameter 5/8"
D1-5 # of studs 6 Stud Diameter 3/4"
D1-6 # of studs 6 Stud Diameter 7/8"
5" "Set-Tru" Bison Threaded Adapter Plates
4 Threaded Type adapters to choose one from:
Spindle nose adapter plate around checkout time.
