Tektronix TDS684A 1GHZ digitizing oscilloscope cal'd
TEKTRONIX TDS684A 1.0 GHz COLOR DIGITIZING OSCILLOSCOPE
Tektronix TDS 684A Color Digitizing Oscilloscopes are portable instruments suitable for use in a variety of test and measurements application and systems. Key features include:
Four input channels, each with 15,000 sample record length. 8-bit vertical resolution.
Simultaneous acquisition of waveforms in all channels at the maximum digitizing rate of 5 Gigasamples/second. All channels acquire at the full analog bandwidth of 1.0 Ghz and all have the same features.
Full programmability and printer/plotter output.

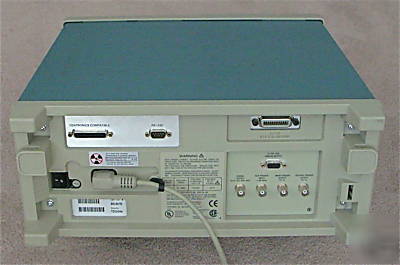

**RS232 and Centronics Port installed (Option 13)
**Floppy Disk Storage installed (Option 1F)
**Advanced DSP math installed (Option 2F)
Advanced functions, such as continuously updated measurements.
A unique graphical user interface (GUI), an on-board help mode, and a logical front panel layout which combine to deliver a new standard in usability.
Besides the input channels, up to three math waveforms and four reference waveforms (saved) are available for display.

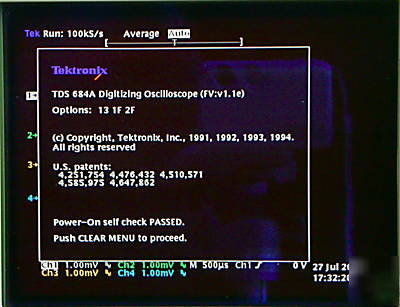

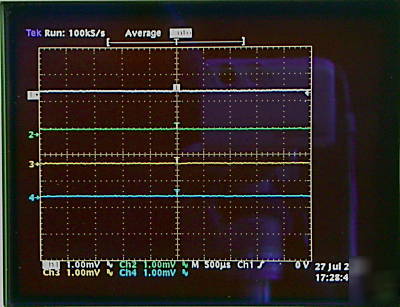

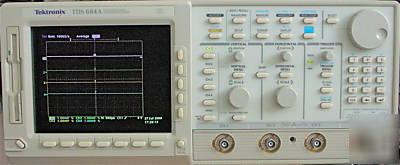

This unit in PERFECT WORKING CONDITION (All power up test PASSED) and COSMETIC . FRESH AND FULLY CALIBRATED to manufactory specification and fully refurnished, picture shown all 4 channels in most sensitive setting and no show AC ripples. All functions check out. Bright, sharp and clear CRT. THOSE ARE THE ACTUAL PICTURES OF THIS UNIT
Come with power cord and user manual (CD), NO probes included.
Canada resident please ADD 5% GST. BC resident please ADD 7% PST
