Nsk nakanishi spindle -601 0.897" nc / cnc lathe
Nsk Nakanishi Spindle NR-601 0.897" NC / CNC Lathe

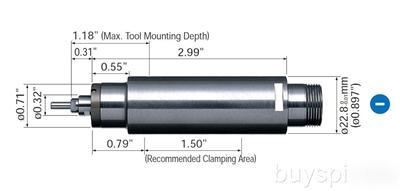

Outside Diameter 0.897" ( 22.8 mm)
Capable of up to 60,000 min-1(rpm) and employs a high-speed
-NR-601 Spindle; Collet 1/8" (CHM-3.175): 1 pc. Wrench (7 x 5.1) , (6 x 4.5) , (20 x 24) : 1 pc. each
This spindle with high-speed rotation is suitable for internalgrinding. Also ideal for small-diameter drilling of higher accuracy..
Allowable Motor Speed: 60,000 min-1(rpm)
Standard Size Collet (CHM-3.175) 1/8"
Wide Variety of Interchangeable Attachments are Available (Optional)
Straight-type spindle is available along with speed reducers to increase torque as well as 90 degree spindles to provide outstanding system flexibility.
Equipped with a protective function to stop the spindle rotation automatically in case of overload ensuring safe and smooth operation. When the protective circuit is activated, an error code is shown on the digital display. In case of an air supply failure, the protective circuit limits the motor/spindle to 25,000 min-1(rpm) maximum.
The housings of the motor and spindle are made from precision ground (SUS416).
The AMH-301 is assembled with ultra-precision steel bearings and is designed to withstand continuous operation at up to 30,000 min-1(rpm).
