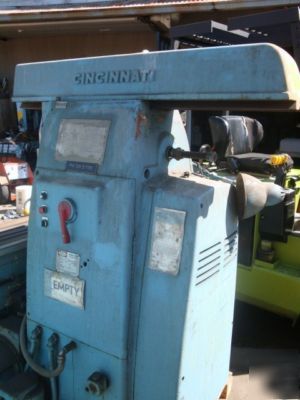

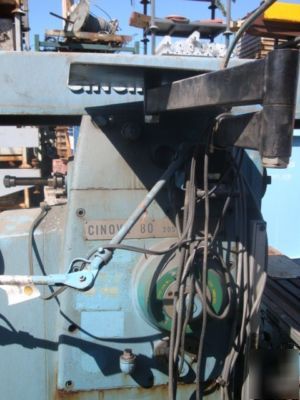

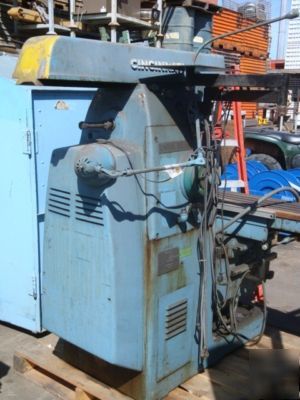

Cincinnati cinova 80 horizontal mill
Cincinnati Cinova 80 DH Veritcal Mill Series 205-12.
TABLE SIZE - OVERALL, L X W: 56-1/2" X 12"
TABLE WORKING SURFACE - L X W: 56-1/2" X 12"
LONGITUDINAL TABLE TRAVEL - 28"
VERTICAL KNEE TRAVEL - 18-1/2"
(16) SPINDLE SPEEDS - 25 TO 2000 RPM
(16) LONGITUDINAL AND CROSS FEEDS - 1/4 TO 30 IPM
VERTICAL FEEDS, RANGE - 1/8 TO 15 IPM
SPINDLE CENTER TO TABLE TOP - MAXIMUM: 18-1/2"
SPINDLE CENTER TO TABLE TOP - MINIMUM: 0"
POWER RAPID TRAVERSE, LONG. & CROSS - 150 IPM
POWER RAPID TRAVERSE, VERTICAL - 75 IPM
SPINDLE MOTOR, HORSEPOWER - 5 HP
FEED MOTOR, HORSEPOWER - 1-1/2 HP
ELECTRICAL SYSTEM - 220-440/3/60
FLOOR SPACE REQUIRED - W X D: 101" X 83"
WEIGHT, APPROXIMATELY - 5100 LBS.
