> Agilent/hp 6684A 40V, 128A 5000 watt dc power supply
Agilent/hp 6684A 40V, 128A 5000 watt dc power supply
Agilent/HP 6684A 40V, 128A 5000 Watt DC Power Supply Used
Model/Part No:6684A Our Item ID: 5400

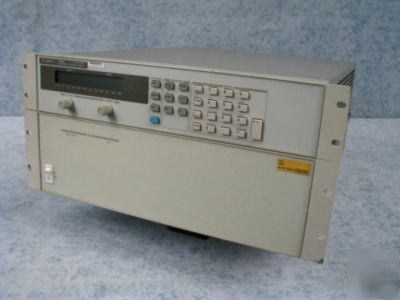

Sold as pictured. One of the units is missing the knob for the voltage adjustment. Contact us for details.D1
6684A 5000 Watt System Power Supply, 40V, 128A Auto-parallel up to three units Outputs can be connected in series Programmable over-voltage and over-current protection Over-temperature protection Discrete Fault Indicator/Remote Inhibit (DFI/RI) Self-test occurs at power-on from an GPIB command User definable power-on state VXI plug&play drivers
Agilent high performance DC power supplies offer speed and accuracy for test optimization. The single output, 5000W, GPIB 6680A-6684A provide low output ripple and noise; selectable compensation for inductive loads; analog control of output voltage and current; and fan-speed control to minimize acoustic noise. The Agilent 5120W, GPIB, single output 6684A is a reliable supply with easy integration for manufacturing test, and provides stable and reliable DC power enhanced with extensive protection features.
Click Here to visit the manufacturer's site.
Current (40 C then derate linearly 1%/ C from 40 C to 55 C): 0 to 128 A
Programming accuracy at (at 25 5 C)
Ripple and Noise Constant Voltage Mode (from 20 Hz to 20 MHz)
Readback Accuracy (at 25 C 5 C)
Item Tested?: Not TestedPhysical Condition: Good; Working Condition: Not Tested, or Unable To Test0 | 32x 24x16 | 1
