Bristoline 3016122 microscope digital w/ cam 4X

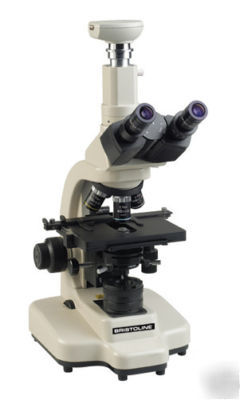

NEW- Bristoline 3016122 Microscope -MICROSCP DIGITAL W/CAM 4X
The Bristoline BR3016122 microscope offers a cost effective solution for all your digital imaging needs. It provides versatility and superior optical and digital quality at an affordable price. The Bristoline BR3016122 features a combination of a sturdy and precision built microscope with a digital camera and image analysis software to deliver outstanding results for all levels of microscopy.
Eyepieces: HWF10x Eyepieces, 20 mm field of view.
Head: Precise Siedentopf binocular or trinocular viewing head, inclined 30 and rotatable 360 for maximum flexibility. Interpupillary distance settings (55-75mm) and diopter adjustment allow the user to maintain objective parfocality when switching to different objective magnifications. The trinocular viewing head is available with either a photo or CCTV tube.
Stand: Ergonomically designed with comfortable low position coaxial coarse and fine focusing controls and an adjustable tension control to maximize individual comfort and convenience. A built-in fixed focus stop allows for rapid image focusing while protecting specimens and objectives. Acid resistant lustrous almond finish.
Nosepiece: Quadruple, ball bearing, reverse angle nosepiece with positive click stops to ensure parcentration. Durable, rubber grip on turret makes switching objectives fast and easy.
Objectives: Infinity corrected, DIN standard achromat or plan, parfocal, parcenter and color-coded. 4x (N.A. 0.10), 10x (N.A. 0.20), Semi-Plan 40x R* (N.A. 0.65), Semi-Plan 100x R* (N.A. 1.25) oil immersion. *Retractable Spring Mount
Stage: Professional double-plate graduated mechanical stage (155 mm x 135 mm) with vernier scales to provide accurate specimen location. Travel area 75 mm (X) x 50 mm (Y), with a low position right-hand control.
Sub-stage: Pre-centered N.A. 1.25 two lens Abbe condenser with iris diaphragm, filter holder and position guide markings for resolution, contrast control and ease of use.
Illumination: Koehler-type variable 6 volt 20 watt enhanced halogen illuminator. Field diaphragm incorporates an aspheric lens system and filter holder for critical illumination. Pre-centered mount for the bulb filament refines light for all contrast techniques. Trap door makes bulb replacement fast and easy.
Image Sensor: 1.3-Megapixel CMOS
Imaging Area: 6.83mm x 5.45mm
Frame Rate: Max 30 fps, Average 15 fps at full resolution
Color: Bayer RGB Mosaic, uncompressed 3 x 8 bit output
