Agilent 44474A 16 bit i/o module
Agilent 44474A 16 Bit I/O Module

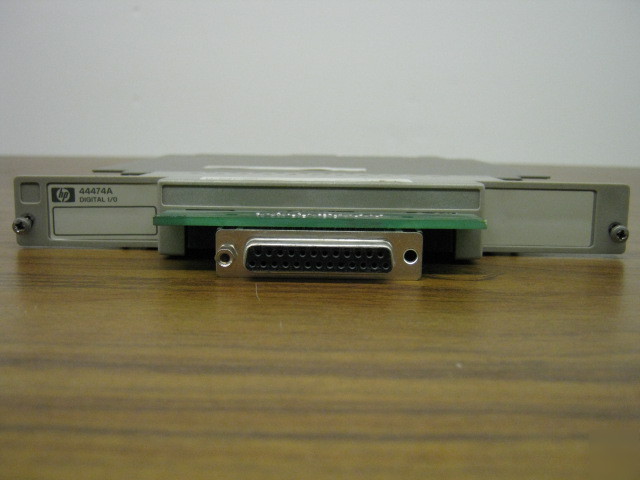

The HP 44474A Digital I/O module (Option 014) for the HP 3488A Switch/Control Unit.
* Digital inputs can be used to sense contact closures to ground
* Each channel provides current sinks for remote switching of external relays, such as the 33311 series coaxial switches
* Maximum Voltage: +30 Vdc (line chassis)
* Output Characteristics: V (high) 2.4V; V (low) 0.4V
* External Increment: Advances HP 3488A to next programmed configuration on falling edge of TTL pulse
* Channel Closed: Indicates completion of new configuration; TTL pulse
