> Suicom. switching dc power supply 40 amps regulated
Suicom. switching dc power supply 40 amps regulated

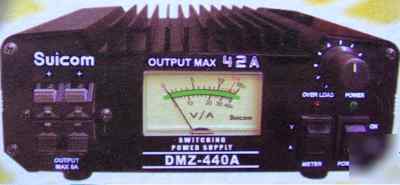

Suicom DC Power Suppy 40 Amps DMZ - 440A
Great for FM & AM Radio Transmitter
This Power Supply is equipped with protection system which is as follows :
If Short circuit happen on the DC Output Voltage will become 0 Volt.
If the current load is excceeding 40 , the DC warning LED indicator will be ON
Great Power supply for Amateur Radio Operator
Protection Led : Lights when over current & short circuit protection
Voltage meter : Shows Output Voltage
Ampere meter : Shows Output Ampere
Output Terminal 1 : 1 set of banana sockets with thread (3A max)
Output Terminal 2 : Quick connect terminal (max 5Amp)
VariableVoltage COntrol : Voltage can be adjust from 9 - 15 Volt DC
Input Voltage : 110/220 Volt AC.50/60Hz
Output Current : 42 Amp.Maximum , 600Watt
Output Voltage Regulator : less than 3mV
Dimension : 175mm(W) x 75mm(H) x 210m(D)
Operating temperature : 0 to 60 degrees Celsius
