> Advance fc-3-1818-18RL-x sink, 3 compartment, 18" x 18"

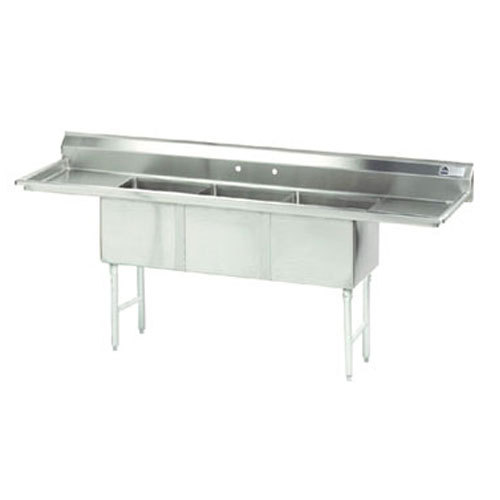

Advance fc-3-1818-18RL-x sink, 3 compartment, 18" x 18"
Sink, 3 Compartment, 18" x 18" Bowl, 18" Drainboard Right, 18" Drainboard Left, 16 Gauge
Fabricated NSF Sink, 3 compartment, 18" right & left drainboards, bowl size 18" x 18" x 14" deep, 16/304 s/s, tile edge splash, rolled edge, faucet holes on 8" centers, s/s legs, 1" adjustable s/s bullet feet, NSF, overall 24" F/B x 90" L/R
* Backsplash has tile edge for ease of installation.
* Sink bowls are 3/4" coved corner and meet NSF requirements.
* Rolled Rim Edge for additional strength.
* Sink Bowls are 14" deep for greater capacity.
* NOTE: 15" x 15" bowls are 12" deep.
* Welded areas blended to match adjacent surfaces and to a
* Gussets welded to a die-embossed reinforced plate.
* 1 5/8" diameter stainless steel legs.
* Stainless steel legs with 1" adjustable stainless steel bullet feet.
* Entire unit is 16 gauge 304 stainless steel.
* Gussets - galvanized steel.
* Supply is 1/2" IPS hot & cold.
* Faucet holes on 8" centers.
* Faucets are not included (see accessories).
* Waste drains are 1 1/2" IPS S/S basket type, located in center
* of sink bowl, and are included.
