Reliance 30310A 7500 watt power transfer switch + inlet
Reliance 30310A 7500 Watt Power Transfer Switch + Inlet

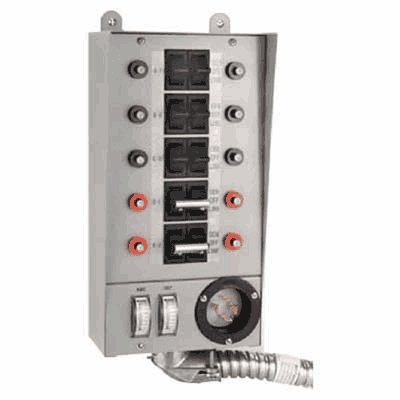

Reliance 30310A Pro/Tran Indoor Transfer Switch
7500Running Watts + Watt Meter
These indoor surface mount transfer switches aredesigned for fast installation in residential and commercial applications. The18-inch flexible conduit whip attaches easily to the load center and all wiresare clearly marked. Simply select the circuits needed in an emergency andconnect them to the Pro/Tran wire leads. Pro/Tran transfer switches feature arugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inchknockouts, reset-able branch rated circuit breakers and non-defeatable(break-before-make) double-throw switches. Some models feature exclusiveReliance watt-meters with accuracy of 3% throughout the entire range. Allmodels with a power inlet on the front *with exception to model 30216BRK* alsoinclude a cover for the power inlet opening that facilitates hardwiring. Allmodels without a power inlet on the front include a covered opening that permitsthe installation of a power inlet for cord connection directly to the transferswitch.
* Max. Generator Running Watts: 7500
* Max. Single-Pole Circuits: 10
* Max. Double-Pole Circuits: 5
* Max. Combined Load @ 125 VAC: 60
* Max. Combined Load @ 250 VAC: 30
* 15 Amp Single-Pole Circuit Breakers: 6
* 20 Amp Single-Pole Circuit Breakers: 4
* Recommended Cord SizeL (gauge): 10
* Dimension H x W x D (inches): 13.75x7x4.5
* Reliance 30310A Pro/Tran Indoor Transfer Switch
